5 Ton Single Girder Gantry Crane Customized for Argentina Customer Ricardo Antonio
Release time：2026/5/18 16:25:32

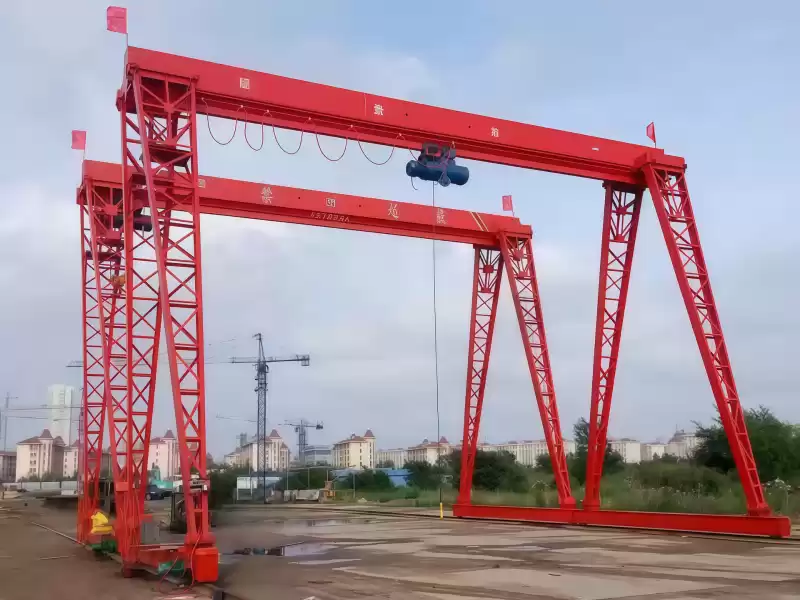

1 set 5 Ton MH Single Girder Gantry Crane with CD type electric wire rope hoist for Argentina customer Ricardo Antonio. The 5 ton single girder gantry crane is used for handling steel raw materials in his factory workshop. Check the 5 ton single girder gantry crane case now.
5 Ton Single Girder Gantry Crane Specification
- Lifting Capacity: 5 Ton
- Lifting Height: 5.5m
- Crane Span: 13m
- Voltage: 380V 50HZ 3Phase (match Argentina local power grid standard)
- Hoist Model: CD type single speed wire rope electric hoist
- Working Class: A3
- Hoist Lifting Speed: 8m/min
- Trolley Travel Speed: 20m/min
- Crane Long Travel Speed: 25m/min
- Control Mode: Pendant push button + wireless remote control
5 Ton Single Girder Gantry Crane Production and Packaging

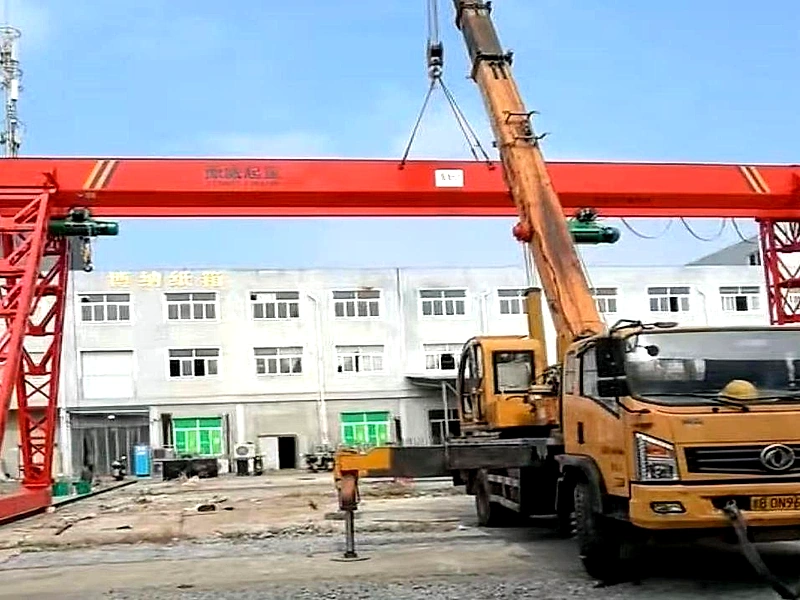

After 12 days production, 1 set 5 ton single girder gantry crane finished all assembly, test and painting procedures.
SUNCAN crane
MH type single girder gantry crane is a light small outdoor & indoor lifting equipment, equipped with CD wire rope electric hoist, widely applied for factory workshop, storage yard, machining workshop, logistics loading area and other industrial lifting scenarios.
The lifting weight of MH single girder gantry crane ranges from 1-20 tons, the standard working level is A3 and A4, customizable span from 7m to 35m, lifting height adjustable according to customer site demand.
Single Girder Gantry Crane Daily Lubrication Management
Same as other industrial lifting machinery, stable operation of single girder gantry crane depends on regular sufficient lubrication. Once lubricating grease fails, crane wheel, gear and bearing parts will suffer severe abrasion and shorten service life. Therefore standardized lubrication maintenance is essential for long-term stable running of gantry crane.
Different crane components have different lubrication cycles. Normally inspect all lubrication points every 2-3 months, supplement or replace lubricating oil timely. For cranes working in heavy-duty, high-frequency or dusty harsh environments, shorten refueling cycle appropriately to guarantee all mechanical structures operate under good lubrication status.
Gantry Crane Key Lubrication Parts
Reducer, open transmission gear, wheel bearing box, end beam rail baffle, hoist motor bearing, brake friction plate, hydraulic pusher cylinder and all connecting shaft bolts of each crane running mechanism.
Get Customized Single Girder Gantry Crane Quotation
When you plan to inquire a single girder gantry crane price, please confirm below key technical items first:
- ■ Lifting capacity: _____tons;
- ■ Lifting height: _____meters;
- ■ Crane span: _____meters;
- ■ Voltage and power supply: ___V ____HZ __ Phase(single phase or 3-phase; 50HZ or 60HZ);
- ■ Working class:_____;
- ■ Hoist lifting speed: _____m/min;
- ■ Trolley travel speed:_____m/min;
- ■ Main girder beam size:__________;
- ■ Application site, lifting materials: _____________;
- ■ Working environment: indoor / outdoor, weather protection needed or not.
SUNCAN crane can design and manufacture single girder gantry cranes of different tonnage, span, lifting height and special voltage configuration according to global customers’ site requirements. If you have demand for 5 ton single girder gantry crane or other specification gantry cranes, please contact us freely for detailed solution and quotation.
