European Crane Hoist Low Headroom Electric Wire Rope Hoist 1t 20t
⭐ Key Features
- Suncan European single girder low headroom wire rope electric hoist \(1t\-20t\) with intelligent control, low carbon and modular design for industrial lifting
🛠️ Service
📋 Product Specifications
| Model Number | SK |
|---|
📄 Product Description
Product Overview

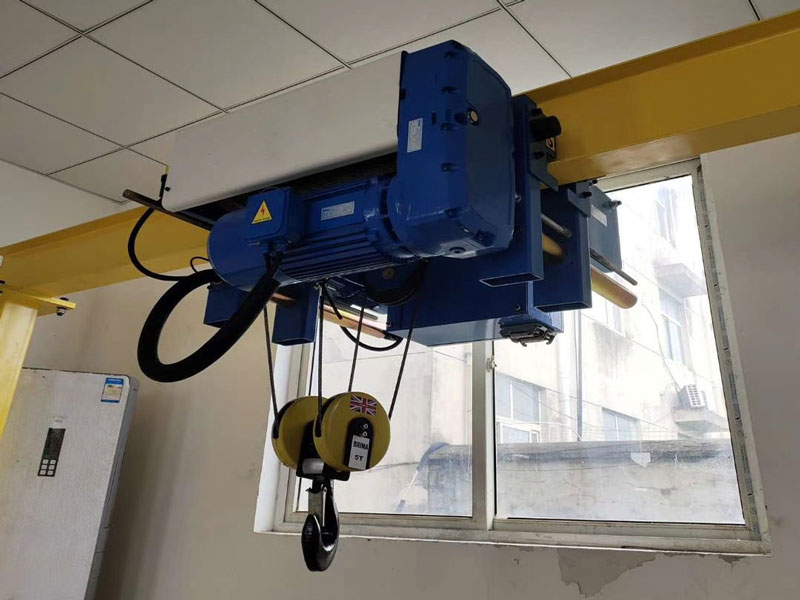

Suncan European single girder low headroom wire rope electric hoist adopts modular design, featuring low headroom, high lifting performance and intelligent control. It covers 1t~20t lifting capacity, suitable for workshops, warehouses, ports and other scenarios.
Technical Parameters
1t-3t Series
| Parameter | 1t | 2t | 3t |
|---|---|---|---|
| Working Class | 3m/M6 | 3m/M6 | 2m/M5 |
| Lifting Speed (m/min) | 0.8/5 (two-speed) | 0.8/5 (two-speed) | 0-5 (VFD) |
| Travel Speed (m/min) | 0-20 | 0-20 | 0-20 |
3t-20t Series (Compact/Standard/8-wheel)
Includes 3t-5t compact/standard series, 6.3t-10t series and 12.5t-20t 8-wheel series. Lifting power ranges from 0.75/5kW (two-speed) to 18.5kW (VFD), travel power 0.65kW (single/double/four motors).
Dimensions & Weight
For 9m/12m/15m lifting height, dimensions (L/L1/L2 in mm) and weight (kg) vary by series. E.g., 1t-3t @9m: L=534mm, L1=831mm, L2=45mm, weight=335kg.
Core Advantages
- Low Headroom Design: Compact structure improves workshop space utilization significantly.
- Intelligent Control: Stable operation, precise positioning, with overload protection & emergency stop as standard.
- Low Carbon & Energy-Saving: High-efficiency motor reduces energy consumption and noise.
- Modular & Customizable: High part universality, easy maintenance, fit for different crane conditions.

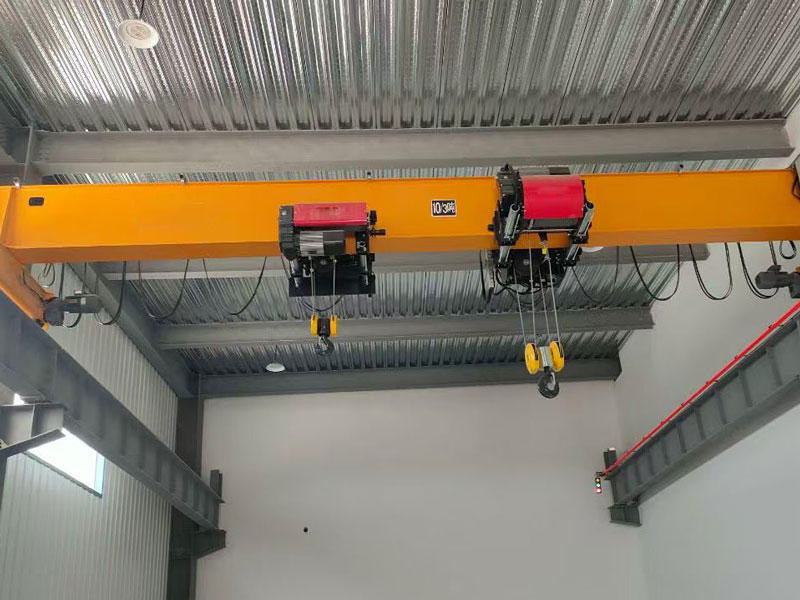

Application Scenarios
Widely used in industrial workshops, logistics warehouses, port terminals, adapting to light to heavy load lifting requirements (M5/M6 working class).
