5-200 Ton Outdoor Campus Heavy Duty AGV | Autonomous Transport Platform
⭐ Key Features
- Triple-fusion navigation: Laser SLAM + GNSS + Inertial for all-weather ±30 mm accuracy
- Payload capacity from 5 to 200 tonnes with standard or omnidirectional drive
- LiFePO₄ battery with 6-hour runtime and fast 3-hour recharge
- No floor modification needed — no rails, guide wires, or reflectors required
- IP55 rated, operates in −20°C to +45°C environments
- Cloud-based fleet management supporting 1 to 500+ vehicles with WMS/MES API integration
🛠️ Service
📋 Product Specifications
| Model Number | SKQL |
|---|---|
| Load Capacity | 5-200 tons |
| Drive Type | Standard drive (5-20T) / Omnidirectional (10-200T) |
| Navigation System | Laser SLAM + GNSS (BeiDou) + Inertial (triple-fusion) |
| Navigation Accuracy | ±30 mm |
| Positioning Accuracy | ±30 mm (standard) · ±10 mm (magnetic track) |
| Grade Capability | ≤ 10% (5.8°) |
| IP Rating | IP55 |
| Operating Temperature | −20°C to +45°C |
| Battery Type | Lithium iron phosphate (LiFePO₄) |
| Battery Runtime | 6 hours (3 hrs empty + 3 hrs loaded) |
| Charge Time | ≤ 3 hours |
| Floor Surface | Concrete · Self-levelling · Steel plate · Asphalt |
| Communication | Wi-Fi 5 (2.4/5.8GHz) · Wi-Fi 6 or 5G optional |
| Safety | Laser obstacle avoidance · 3D sensing · Emergency stop · Audio/visual alarm |
| Fleet Management | KNCRANES AGVS Cloud (1 to 500+ vehicles) |
| Certifications | CE · IP55 · ISO 9001:2015 |
📄 Product Description
Product Introduction

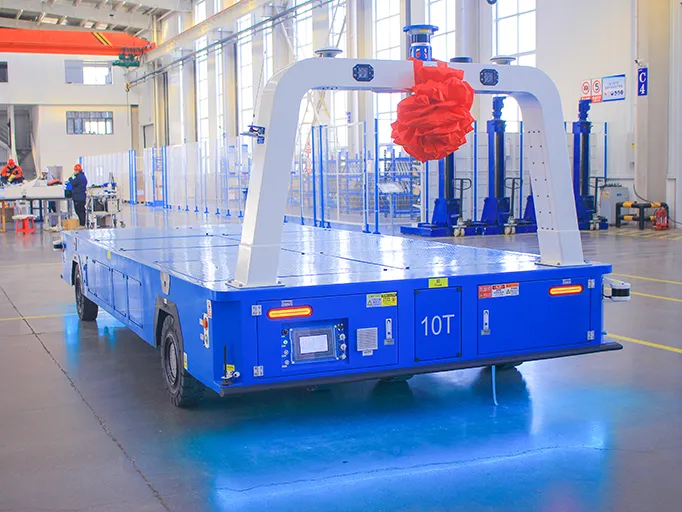

The Outdoor Campus AGV (Heavy-Duty Unmanned AGV) is an autonomous transport platform engineered for demanding intra-factory and campus logistics. It moves payloads from 5 to 200 tonnes across concrete floors, steel surfaces, and mixed indoor-outdoor routes without human intervention. Combining laser SLAM, GNSS satellite and inertial navigation in a single triple-fusion system, every vehicle self-maps its environment, avoids obstacles and docks to ±30 mm accuracy without any floor modification or guide wires.
Key Features
- Triple-fusion navigation system: Laser SLAM + GNSS (BeiDou) + Inertial navigation for all-weather positioning
- Payload range from 5 to 200 tonnes with standard-drive and omnidirectional drive options
- ±30 mm positioning accuracy, ±10 mm with optional magnetic track
- LiFePO₄ battery with 6-hour runtime, full recharge in under 3 hours
- IP55 protection grade, operates from −20°C to +45°C
- Fleet management via cloud platform supporting 1 to 500+ vehicles
Applications

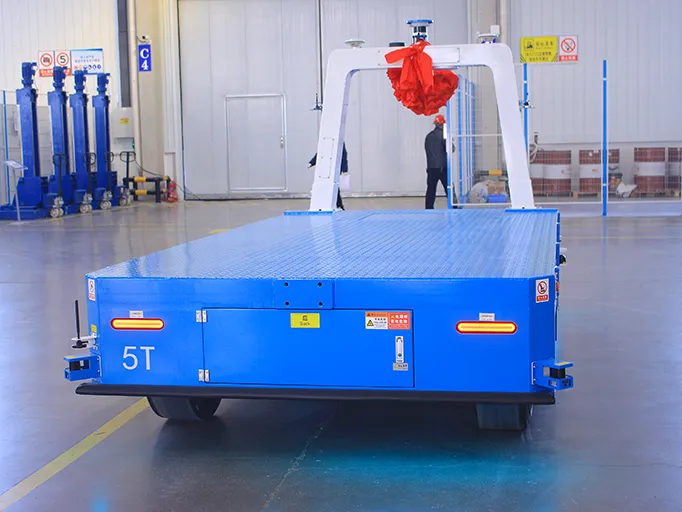

Both standard and omnidirectional AGV series are proven across heavy manufacturing, energy and logistics sectors. Typical applications include battery module and ESS cabinet logistics in new-energy factories, sub-assembly transport in wind turbine manufacturing, 20ft and 40ft container inter-zone transport in industrial parks, steel coil transport in mills and warehouses, over-dimensional component handling for mining equipment, and general pallet and ton-bag transport between production zones and dispatch areas.
Quality Assurance
| Item | Standard |
|---|---|
| Certification | CE / ISO 9001:2015 |
| Navigation Accuracy | ±30 mm (standard) / ±10 mm (magnetic track) |
| IP Rating | IP55 |
| Operating Temperature | −20°C to +45°C |
| Warranty | 1 Year |
