HHBB Hook type chain hoist
⭐ Key Features
- HHBB hook type chain hoist safe durable industrial lifting equipment with full safety features
🛠️ Service
📋 Product Specifications
| Model Number | HHBB |
|---|
📄 Product Description
Product Introduction

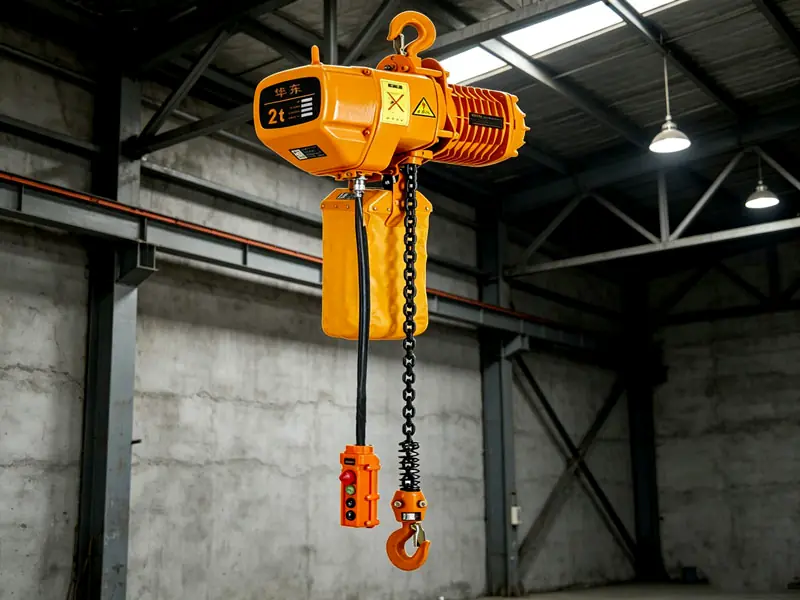

HHBB Hook type chain hoist is a professional industrial lifting equipment with high strength, safety and durability. It is widely used in factories, construction sites, chemical plants and other working scenarios, providing stable and reliable lifting solutions for heavy-duty handling.
Key Structural Features

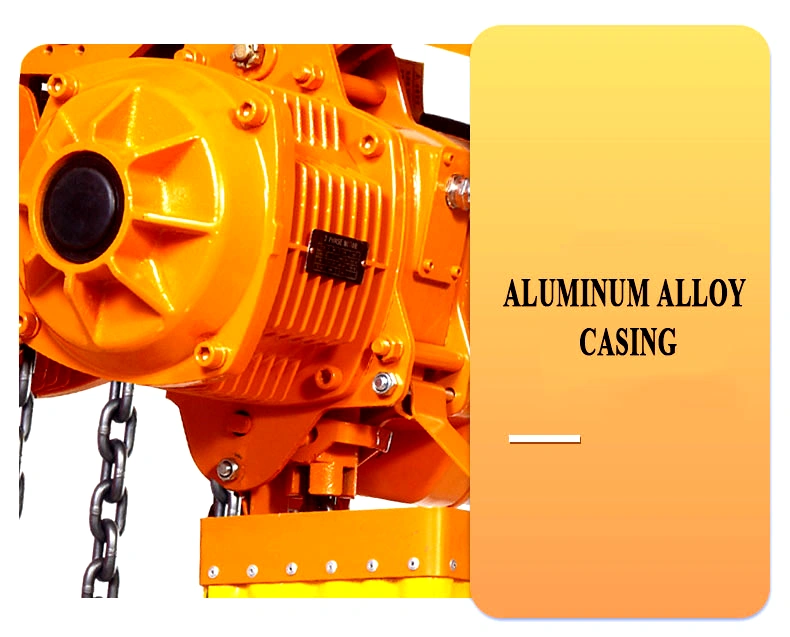

1. Aluminum Alloy Shell
Sturdy structure with light weight, supports continuous operation; fast heat dissipation and fully sealed design, suitable for chemical plants and harsh environments.

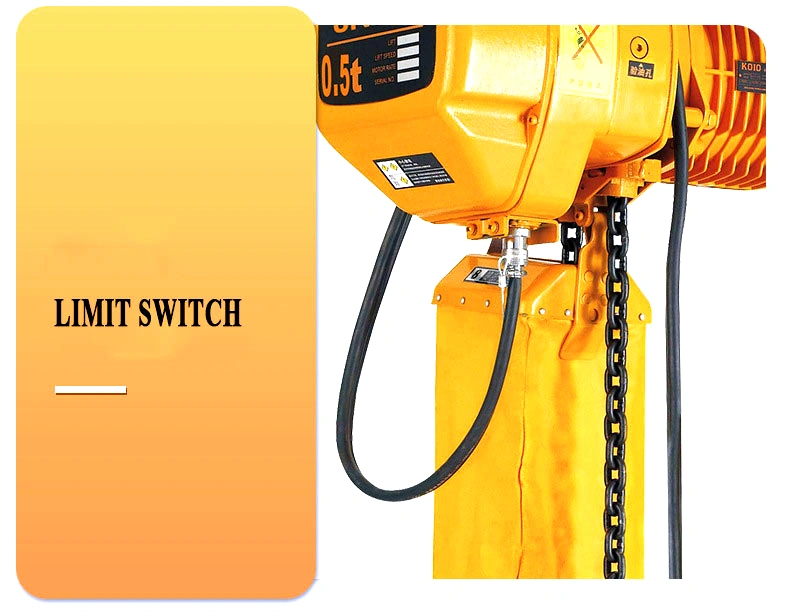

2. Limit Switch
Automatic stop when lifting up and down to the limit position, effectively ensuring operation safety and avoiding equipment damage.

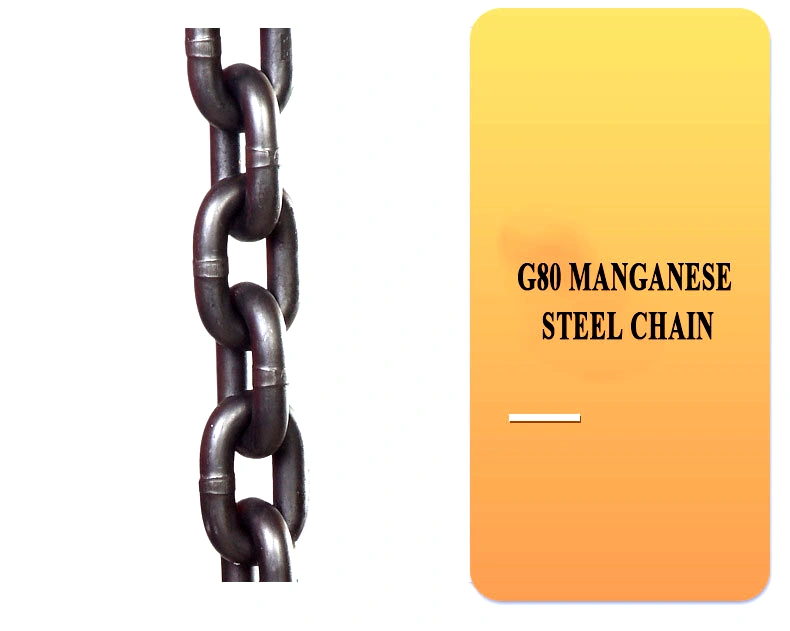

3. G80 Manganese Steel Chain
High toughness, strong and durable, greatly improves the safety and service life of the hoist during lifting work.
Product Safety Details

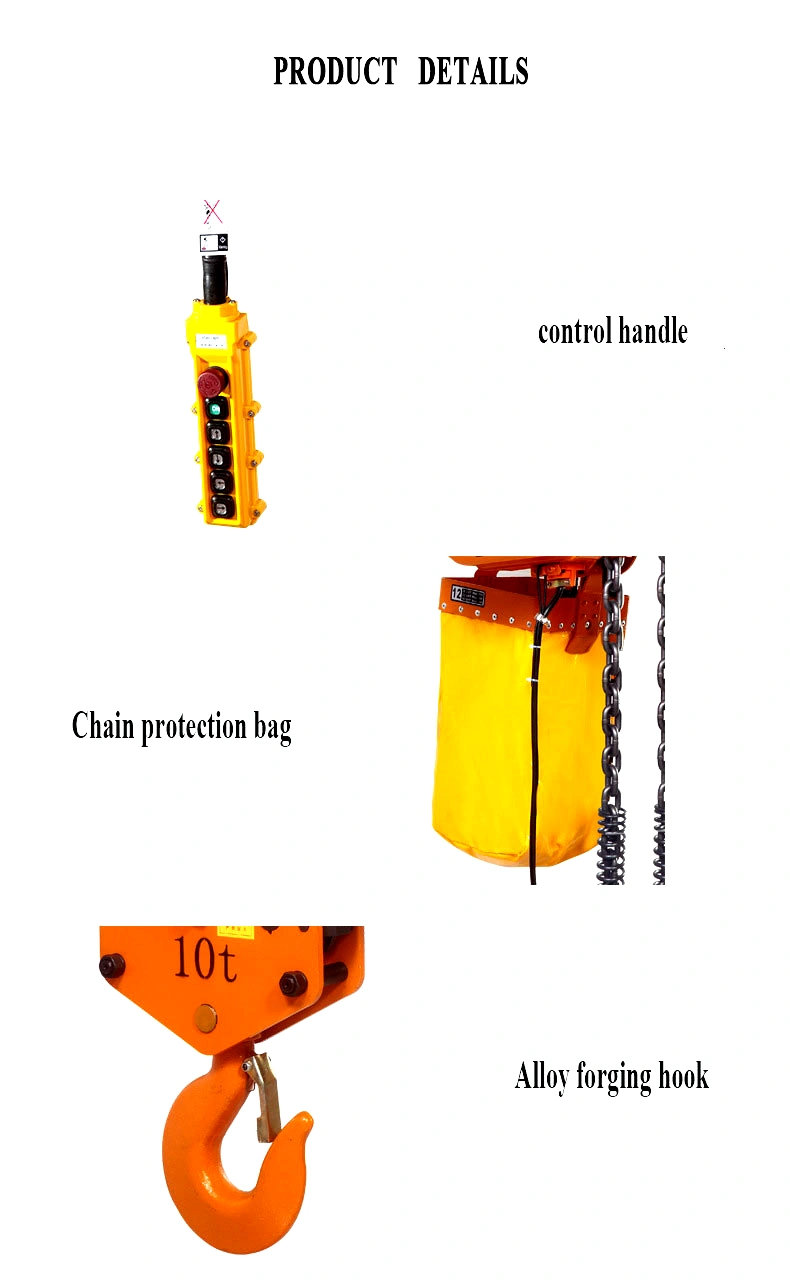

1. Waterproof Controller
Equipped with waterproof button switch and emergency stop button, safe and convenient to operate in wet and harsh environments.
2. Alloy Forged Hook
Not easy to break, 360° rotatable, with safety tongue to ensure safe lifting and prevent heavy objects from falling.
3. Chain Protection Bag
Prevents chain from free falling, jamming or sticking to dirt, keeps chain clean and extends service life.
Technical Parameters

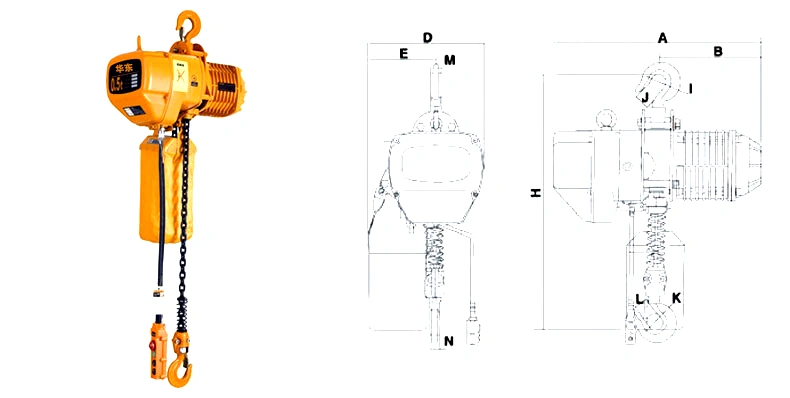

Small Tonnage (0.5-5 Ton)
| Model | Capacity(Ton) | Lifting Height(m) | Lifting Speed(m/min) | Lifting Motor Power(kw) | Motor Speed(r/min) | Phases | Working Voltage(V) | Working Frequency(Hz) |
|---|---|---|---|---|---|---|---|---|
| HHBB0.5-01 | 0.5 | 3/9 | 7.2 | 1.1 | 1440 | 3 | 220-440 | 50/60 |
| HHBB01-02 | 1.0 | 3/9 | 3.6 | 1.1 | 1440 | 3 | 220-440 | 50/60 |
| HHBB01-01 | 1.0 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| HHBB02-01 | 2.0 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| HHBB02-02 | 2.0 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| HHBB02-03 | 2.0 | 3/9 | 6.6 | 3.0 | 1440 | 3 | 220-440 | 50/60 |
| HHBB03-01 | 3.0 | 3/9 | 3.9 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| HHBB03-02 | 3.0 | 3/9 | 3.6 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| HHBB03-03 | 3.0 | 3/9 | 5.3 | 3.0 | 1440 | 3 | 220-440 | 50/60 |
| HHBB05-01 | 5.0 | 3/9 | 2.8 | 3.0 | 1440 | 3 | 220-440 | 50/60 |
| HHBB05-02 | 5.0 | 3/9 | 2.8 | 3.0 | 1440 | 3 | 220-440 | 50/60 |

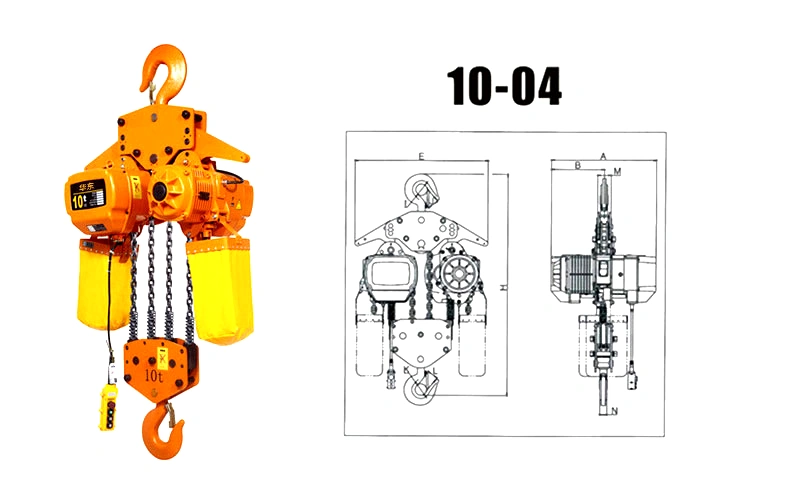

HHBB Series Large Tonnage Parameters
Large Tonnage (10-25 Ton)
| Model | Capacity(Ton) | Lifting Height(m) | Lifting Speed(m/min) | Lifting Motor Power(kw) | Motor Speed(r/min) | Phases | Working Voltage(V) | Working Frequency(Hz) |
|---|---|---|---|---|---|---|---|---|
| HHBB10-04 | 10.0 | 3/9 | 2.8 | 3×2 | 1440 | 3 | 220-440 | 50/60 |
| HHBB15-06 | 15.0 | 3/9 | 1.8 | 3×2 | 1440 | 3 | 220-440 | 50/60 |
| HHBB20-08 | 20.0 | 3/9 | 1.4 | 3×2 | 1440 | 3 | 220-440 | 50/60 |
| HHBB25-10 | 25.0 | 3/9 | 1.1 | 3×2 | 1440 | 3 | 220-440 | 50/60 |
Application & Safety Assurance
This hoist is suitable for industrial lifting in chemical plants, factories, construction sites and other places. With multiple safety designs, it ensures stable and safe operation in long-term heavy-duty work.
