LD Single Girder Bridge Crane 1-20 Ton Overhead Crane
⭐ Key Features
- Reasonable structure with high-strength steel for durability
- 1-20 ton capacity, 7.5-28.5m span, working grade A3-A4
- Compatible with CD/MD electric hoist for flexible operation
- Two operation modes: ground control or open/closed cabin
- Wide application in plants, warehouses, and material stocks
🛠️ Service
📋 Product Specifications
| Model Number | LD |
|---|---|
| Capacity | 1-20 tons |
| Span | 7.5-28.5m |
| Working Grade | A3-A4 |
| Working Temperature | -25°C to 40°C |
| Hoist Type | CD/MD Electric Hoist |
| Operation Method | Ground Control or Cabin (Open/Closed) |
| Cabin Entry | Side or End |
| Crane Type | Single Girder Overhead Crane |
| Power Supply | Customizable (380V/50Hz or as required) |
📄 Product Description
The LD model single girder motor crane features a more reasonable structure and higher strength steel as a whole. Used together with CD or MD model electric hoist as a complete set, it is a light-duty crane with a capacity of 1 to 20 tons. The span ranges from 7.5 to 28.5 meters, and the working grade is A3-A4. This industrial crane operates efficiently within a working temperature of -25°C to 40°C.
Product Overview

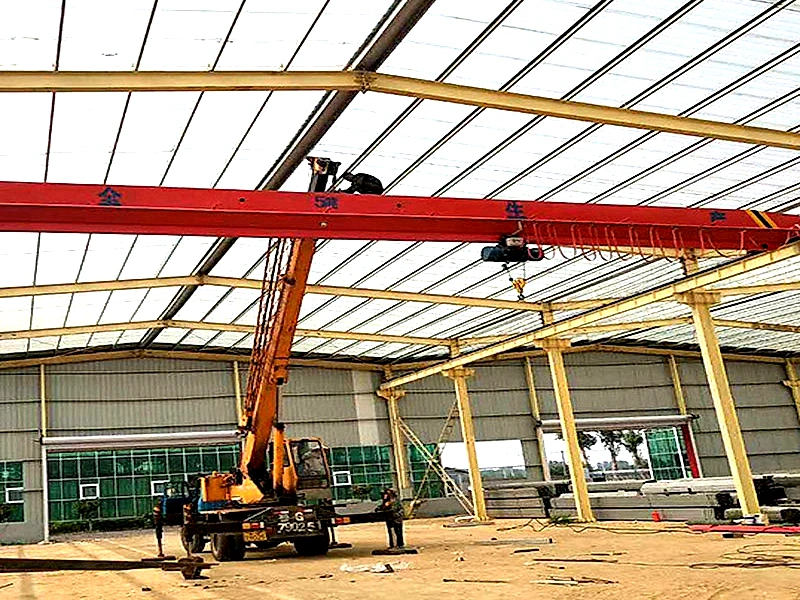

This single beam bridge crane is widely used in plants, warehouses, and material stocks to lift goods. It is prohibited to use the equipment in combustible, explosive, or corrosive environments. The overhead crane offers two operational methods: ground control or an operational room, which has open and closed models. The cabin can be installed on the left or right side according to practical situations. The direction of entering the gate has two forms—from the side and the end—to satisfy users’ choices under different conditions.
Key Features
- High-Strength Steel Structure: Ensures durability and long service life for heavy lifting tasks.

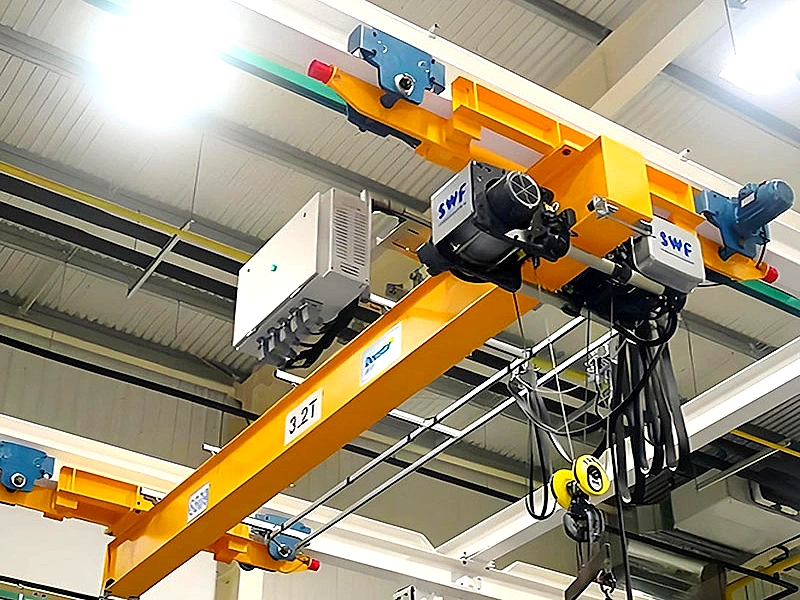

- Flexible Hoist Compatibility: Pairs with CD and MD electric hoists for versatile lifting operations.
- Multiple Operation Modes: Ground control and cabin options enhance operational safety and convenience.
- Customizable Span and Capacity: Available from 1 to 20 tons with spans up to 28.5 meters to meet diverse industrial needs.
- Wide Temperature Range: Reliable performance in temperatures from -25°C to 40°C.
Applications
This material handling crane is ideal for factories, workshops, warehouses, and stockyards. It is perfect for lifting and moving heavy goods, machinery, and raw materials in industrial environments. The LD single girder crane enhances productivity and safety in logistics and manufacturing operations.
Quality Assurance
Our overhead crane is manufactured under strict quality control standards to ensure reliability and safety. Each unit undergoes rigorous testing before delivery. We provide comprehensive technical support and after-sales service for global B2B clients.
Specifications
| Capacity | 1-20 tons |
| Span | 7.5-28.5m |
| Working Grade | A3-A4 |
| Working Temperature | -25°C to 40°C |
| Hoist Type | CD/MD Electric Hoist |
| Operation Method | Ground Control or Cabin (Open/Closed) |
| Cabin Entry | Side or End |
| Crane Type | Single Girder Overhead Crane |
| Power Supply | Customizable (380V/50Hz or as required) |
