LD Model Electric Single Girder Crane
⭐ Key Features
- LD model electric single girder crane is a reliable light duty lifting equipment for industrial material handling
🛠️ Service
📋 Product Specifications
| Model Number | LD |
|---|
📄 Product Description

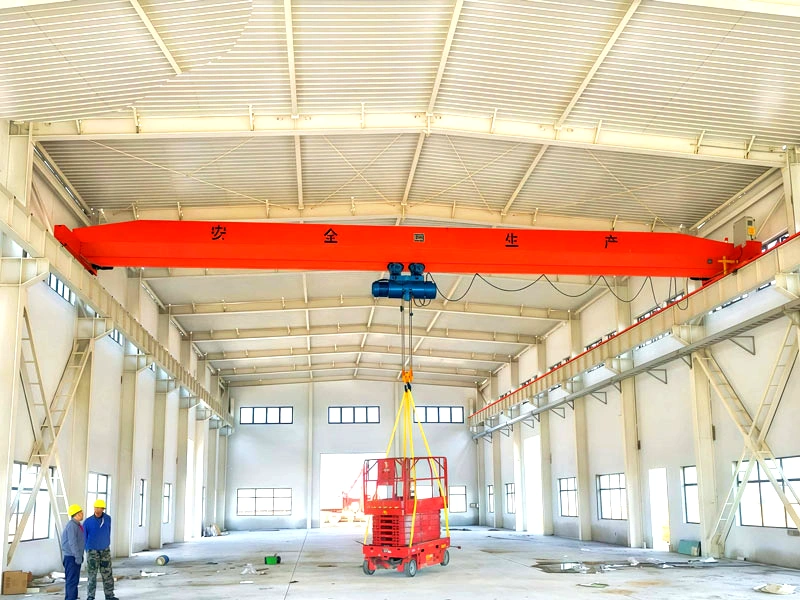

Product Overview
LD Model Electric Single Girder Crane features reasonable structure and high-strength steel. Matching CD/MD electric hoists, it is a light duty crane with 1-20 tons lifting capacity.

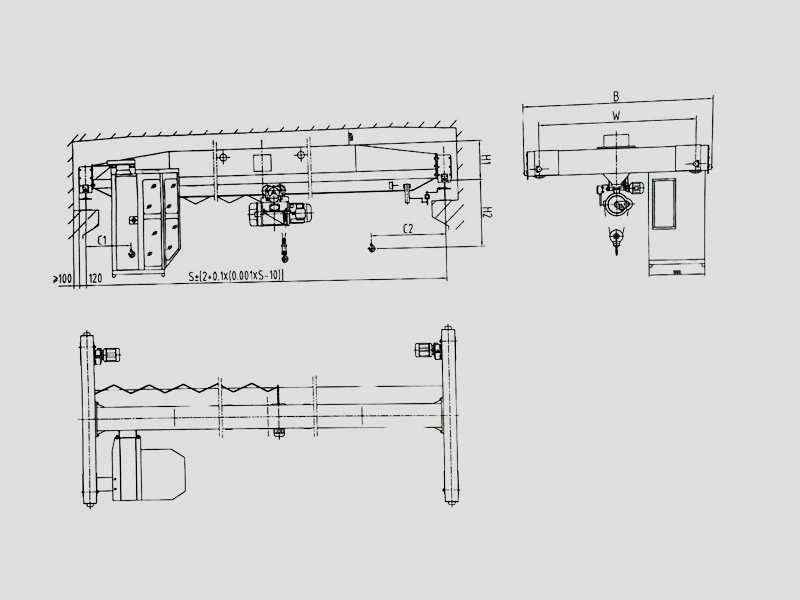

Full Technical Specifications
Complete technical parameters, covering mechanism, motor, hoist and power supply details.
| System/Component | Parameter Item | Specification Value |
|---|---|---|
| Crane Travelling Mechanism | Travelling Speed (m/min) | 58.95 (20), 39.42 (25), 26.51 (30), 19.44 (room45/60) |
| Motor | Type | Cone squirrel-cage (20/25/30/room45); Cone squirrel-cage winding thread (room60) |
| Power (kW) | 0.8×2, 1.5×2, 2.2×2 (20/25/30/room45); 1.5×2, 2.1×2 (room60) | |
| Rotational Speed (r/min) | 1380 (20/25/30/room45), 1350 (room60) | |
| Matching Hoist Model | MD1 Model (8.0/8, 7/0.7, 3.5/0.35); CD1 Model (8, 7, 3.5) | |
| Electric Hoist Lifting Mechanism | Lifting Height (m) | 6, 9, 12, 18, 24, 30 (MD1); 20, 30 (CD1) |
| Travelling Speed Type | Cone squirrel-cage / Cone intermediate model | |
| Working Class | Duty Grade | Intermediate (Jc=25%) |
| Power Supply | Standard | 380V 50Hz Three-phase |
| Wheel & Rail | Wheel Diameter | Φ250, Φ315 |
| Rail Width Range | 37–70 mm |
Application Scenarios
Widely used for lifting goods in plants, warehouses and material stocks. Prohibited in flammable, explosive or corrosive environments.

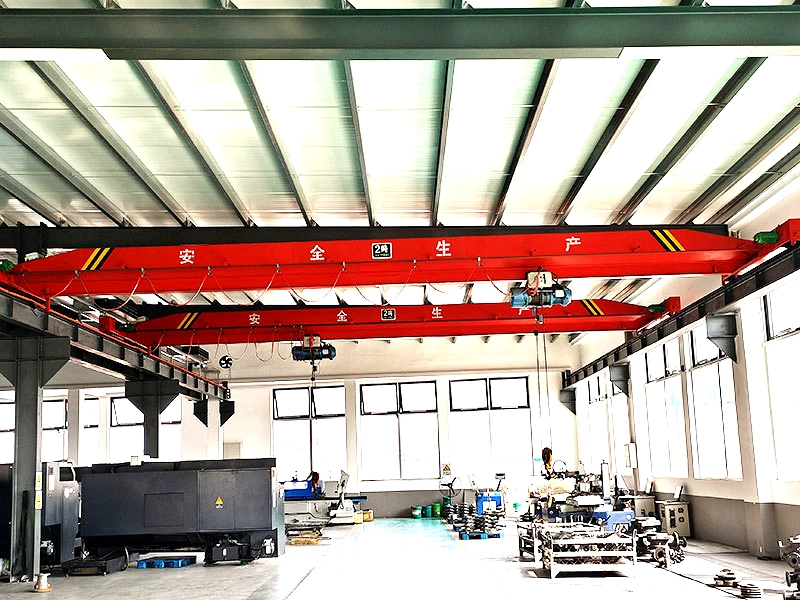

Operation Methods
Two modes: ground control & operation room. Open/closed cabin, left/right installation, side/end gate entry for flexible use.
Safety Notes
Follow operation standards strictly. Do not use in hazardous environments to ensure equipment safety and stable operation.
