LDA Type 1-20 Ton Electric Single Beam Bridge Crane
⭐ Key Features
- Durable LDA Type 1-20 ton electric single beam bridge crane designed for efficient material handling in industrial sites, with customizable operation modes and strict safety standards.
🛠️ Service
📋 Product Specifications
| Model Number | LDA |
|---|
📄 Product Description

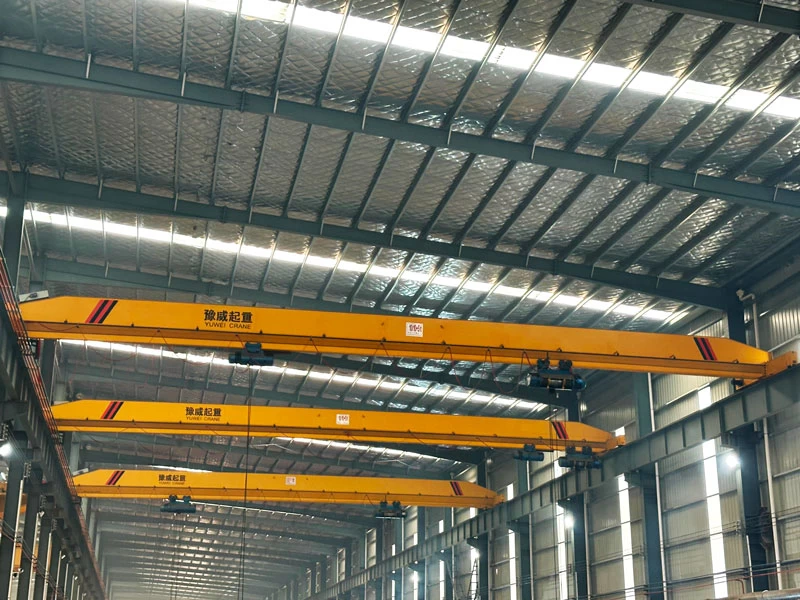

Product Overview
LDA Type 1~20t Electric Single Beam Crane is specially designed for material handling in factories, warehouses, yards and other conventional working conditions. It is strictly prohibited to use in environments with flammable, explosive and strong corrosive hazardous media to ensure operational safety.
The crane supports two operation modes (ground operation / driver’s cab operation) for optional selection. The driver’s cab has open and closed structures, and can be installed on the left or right side according to on-site needs. The access direction includes side entry and end entry to adapt to different plant layouts.
Whole Machine Structure (Closed Cab Model)
- End carriage
- Closed cab
- Main beam
- Tonnage brand
- Electric hoist
- Electric power transmission device
Core Technical Parameters by Tonnage
1~5t Specification
| Item | Detailed Parameters |
|---|---|
| Trolley Travel Speed | 20m/min (ground); 30m/min (air) |
| Transmission Ratio | 58.78 (ground), 39.38 (air) |
| Travel Motor | Ground: YSE80₂-4, power 2×0.8/4×0.8 Kw, speed 1380r/min Air: ZDR100L-4, power 2×1.5 Kw |
| Electric Hoist Model | CD₁ type (single speed) / MD₁ type (double speed) |
| Lifting Speed | 8 m/min |
| Standard Lifting Height | 6 / 9 / 12 / 18 / 24 / 30 m |
| Hoist Trolley Travel Speed | 20 m/min |
| Lifting Motor Type | Tapered squirrel cage motor |
| Whole Machine Working Class | A3 |
| Power Supply Specification | 380V 50Hz Three-phase AC |
| Wheel Diameter | φ270 |
| Adaptable Track Width | 37~70mm |
10t Specification
| Item | Detailed Parameters |
|---|---|
| Trolley Travel Speed | 20m/min (ground); 30m/min (air) |
| Transmission Ratio | 58.78 (ground), 39.38 (air) |
| Travel Motor | Ground 1: YSE90L-4, 2×1.5 Kw Ground 2: YSE80₂-4, 4×0.8 Kw Air: ZDR100L-4, 2×1.5 Kw |
| Electric Hoist Model | CD₁ type / MD₁ type |
| Lifting Speed | CD₁: 7 m/min; MD₁: 7 / 0.7 m/min (double speed) |
| Standard Lifting Height | 9 / 12 / 18 / 24 / 30 m |
| Hoist Trolley Travel Speed | 20 m/min |
| Lifting Motor Type | Tapered squirrel cage motor |
| Whole Machine Working Class | A3 |
| Power Supply Specification | 380V 50Hz Three-phase AC |
| Wheel Diameter | φ270 |
| Adaptable Track Width | 37~70mm |
16t Specification
| Item | Detailed Parameters |
|---|---|
| Trolley Travel Speed | 20m/min (ground) |
| Transmission Ratio | 58.78 |
| Travel Motor | YSE90L-4 (2×1.5 Kw) YSE80₂-4 (4×0.8 Kw) YSE90L-4 (4×1.5 Kw) |
| Electric Hoist Model | CD₁ type / MD₁ type |
| Lifting Speed | CD₁: 3.5 m/min; MD₁: 3.5 / 0.35 m/min (double speed) |
| Standard Lifting Height | 9 / 12 / 18 / 24 / 30 m |
| Hoist Trolley Travel Speed | 20 m/min |
| Lifting Motor Type | Tapered squirrel cage motor |
| Whole Machine Working Class | A3 |
| Power Supply Specification | 380V 50Hz Three-phase AC |
| Wheel Diameter | φ270 |
| Adaptable Track Width | 51~70mm |
20t Specification
| Item | Detailed Parameters |
|---|---|
| Trolley Travel Speed | 20m/min (ground) |
| Transmission Ratio | 58.78 |
| Travel Motor | YSE90L-4, power 4×1.5 Kw |
| Electric Hoist Model | CD₁ type / MD₁ type |
| Lifting Speed | CD₁: 3.5 m/min; MD₁: 3.5 / 0.35 m/min (double speed) |
| Standard Lifting Height | 9 / 12 / 18 / 24 / 30 m |
| Hoist Trolley Travel Speed | 20 m/min |
| Lifting Motor Type | Tapered squirrel cage motor |
| Whole Machine Working Class | A3 |
| Power Supply Specification | 380V 50Hz Three-phase AC |
| Wheel Diameter | φ270、φ370 |
| Adaptable Track Width | 51~70mm |
Installation Process & Safety Norms
Official Installation Guide (English)
- Prepare a level and solid ground first.
- Check all components before installation.
- Install end carriages steadily.
- Fix the main girder safely.
- Assemble the hoist correctly.
- Connect electric wires properly.
Safety Construction Requirements
- Tighten all bolts and joints without looseness.
- During installation and commissioning, personnel are strictly prohibited from entering the dangerous range of lifting operations.
- Carry out no-load trial operation of each moving part one by one to verify that all action logic is normal.
- Check all safety protection devices of the whole machine item by item to ensure they are all effective.
- Conduct no-load and load trial operation of the whole machine to ensure long-term stable and safe operation.
- Installation and acceptance must be completed by professional certified personnel.
