U Type Double Girder Gantry Crane
⭐ Key Features
- U type double girder gantry crane 10-50/10ton with CE ISO certification, suitable for ports yards and warehouses
🛠️ Service
📋 Product Specifications
| Model Number | U |
|---|---|
| Package Size | 30*2*2M |
| Gross/Net Weight | 60000KG |
📄 Product Description
Product Overview

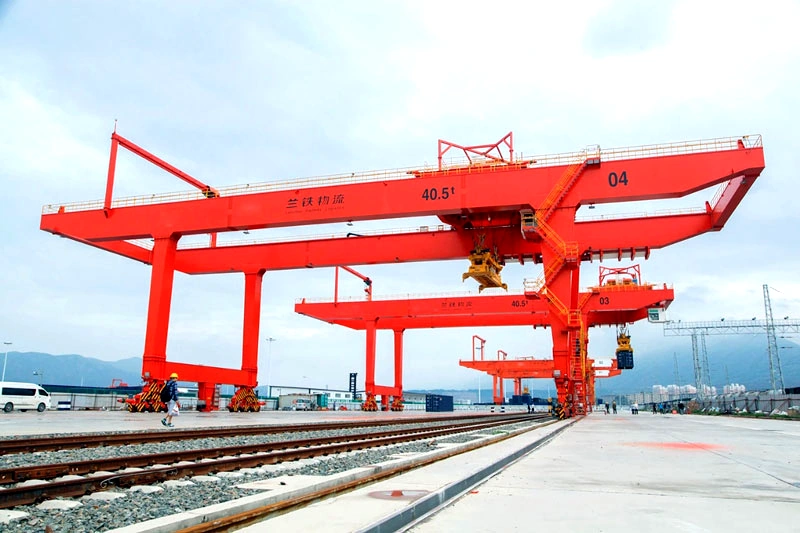

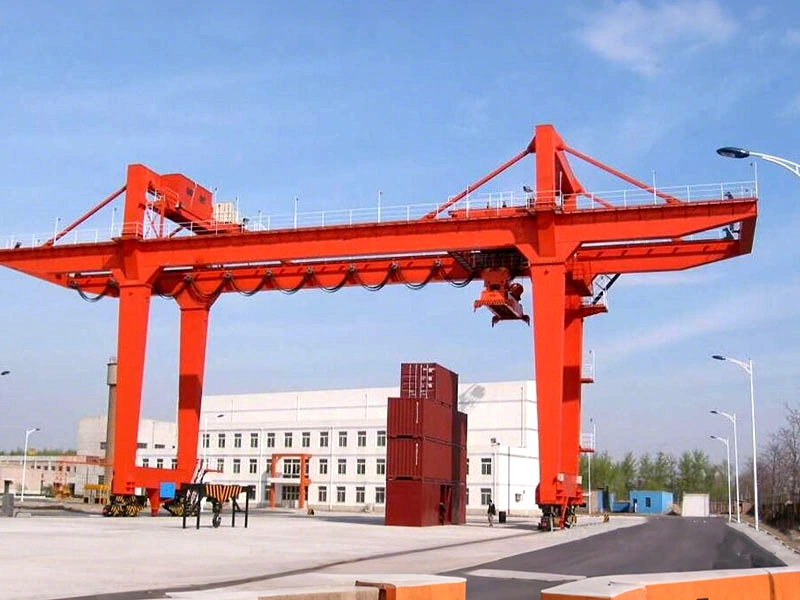

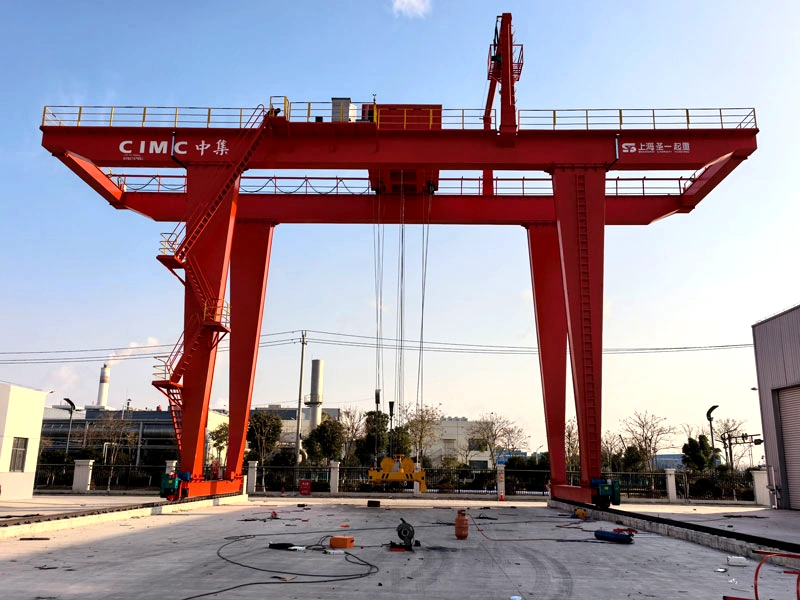

U Type Double Girder Hook Gantry Crane is a heavy-duty lifting device designed for large-span and high-frequency loading/unloading. It is widely used in railway yards, ports, open warehouses and container transshipment stations. Adopting U-shaped gantry structure, it has nearly 7m clearance under legs, suitable for long/bulky goods and standard container handling. It supports two power conduction modes: trolley wire (recommended for stable power supply & easy maintenance) and cable reel, please confirm the mode and installation position when ordering.
Company Strength & Certification
Henan Suncan Crane Equipment Co.,Ltd is a professional manufacturer and exporter of lifting equipment integrating R&D, production, sales and after-sales service. All products comply with CE, ISO and international standards, providing reliable quality, competitive price, customized solutions and global after-sales support.
Product Structure & Core Features
- U-shaped gantry design: rigid connection between legs and main beam, high rigidity, strong stability and large leg clearance
- Double girder box structure: strong load-bearing capacity, stable operation for medium and heavy lifting
- Double hook configuration (partial models): main and auxiliary hooks work together to improve efficiency
Technical Parameters
| Item | 10t | 16t | 20/10t | 32/10t | 36/16t | 50/10t |
|---|---|---|---|---|---|---|
| Lifting Capacity(t)(Main/Aux) | 10/- | 16/- | 20/10 | 32/10 | 36/16 | 50/10 |
| Span S(m) | 18/22/26/30/35 | 18/22/30 | 18/22/26/30/35 | 22/26 | 22/26/30/35 | 32 |
| Lifting Height(m)(Main) | 11.5 | 10.5/12 | 10.5 | 11.5 | 11.5 | 12 |
| Duty Group(GB/T 3811) | A5 | A5 | A5 | A5 | A5 | A5 |
| Power Supply | Three-phase AC 380V 50Hz | |||||
Application Scenarios
- Railway Yards: Container, steel and bulk cargo handling
- Port Terminals: Open yard container and general cargo loading
- Open Warehouses: Long/bulky goods stacking and transfer
- Container Stations: Standard container hoisting and transshipment
Order Instructions
Confirm lifting capacity, span, lifting height and duty group; choose power conduction mode; note special requirements (anti-corrosion, explosion-proof, etc.); match rail and foundation according to recommended rail type.
Maintenance & Safety Tips
- Regular inspection: Check steel wire rope, brake and limit device monthly
- Lubrication: Add lubricating oil to bearings and gearboxes regularly
- Operation: Certified operators, no overloading, pre-operation inspection
