Overhead Stacking Crane for Automated Stereoscopic Warehouse

Product Introduction

The overhead stacking crane is a specialized equipment for automated three-dimensional shelves (secret storage), with a lifting capacity of 0.5t-20t and a lifting height of 2-10 meters, suitable for various storage environments. The core execution unit consists of a bridge frame, a running trolley, a column, a cargo platform, and a standard forklift frame. It moves longitudinally along the top track of the warehouse and laterally along the trolley, achieving multi lane coverage and adapting to medium and high-rise warehouses below 8m. It can handle various types of goods such as boxed, palletized, bar and pipe materials.

Specifications

Rated Load: 1000kg
Lifting Height: 12m
Horizontal Operating Speed: 120m/min
Lifting Speed: 30m/min
Forklift Telescopic Speed: 20m/min
Structural Form: Triangle Column
Shelf Type: Heavy Duty Crossbeam Shelving/Welded Shelving
Location Size: Customized on Demand
Total Cargo Capacity: 500-5000+

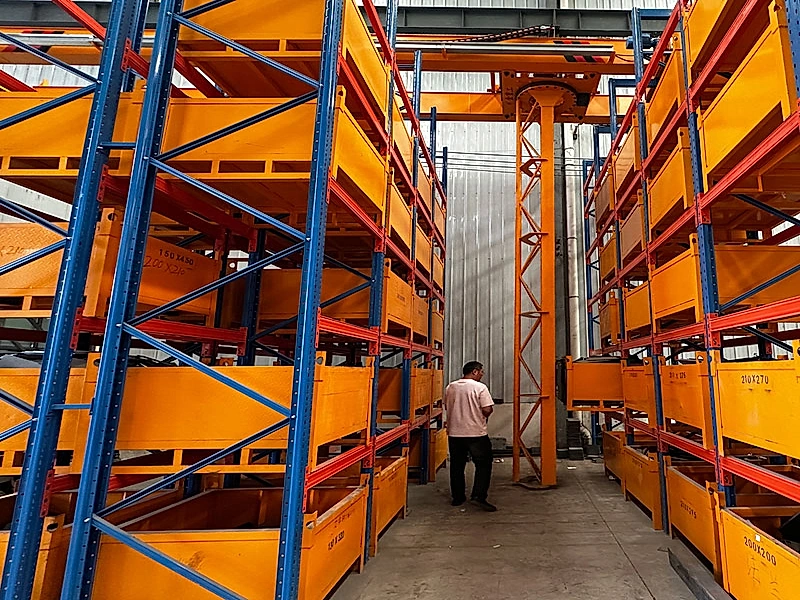

Key Features

• Variable frequency smooth operation with remote control handle for easy operation
• Triangular-structure mast delivers superior anti-vibration and anti-sway stability
• Double-girder bridge rail system ensures excellent load-bearing capacity and minimal deflection
• 360° rotating gear turntable driven by high-efficiency variable frequency motor for stepless speed control
• Standard adjustable fork carriage fits diverse pallet/container sizes for flexible operation
• Energy saving 80% compared to electric forklifts, reducing overall cost by over 50%
• Channel width reduced to within 2 meters, increasing warehouse utilization by 30%

Applications

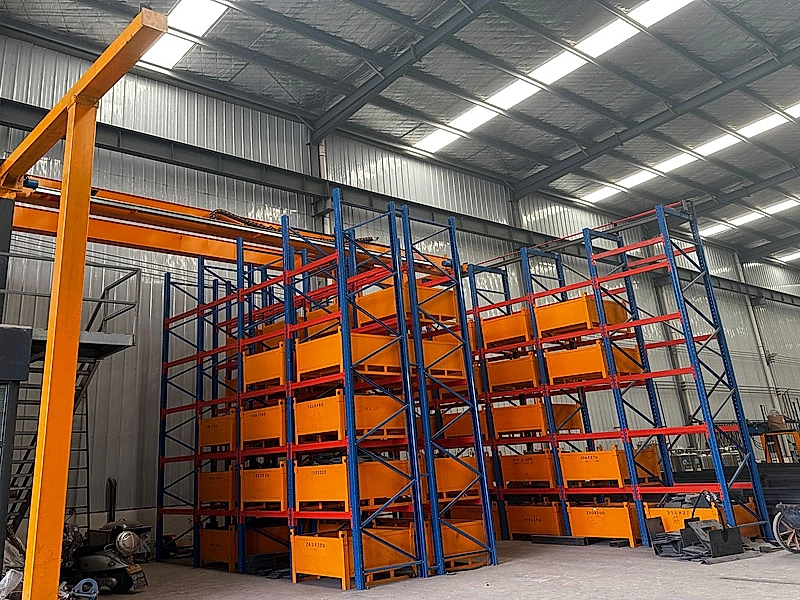

The overhead stacking crane is ideal for manufacturing industries such as automotive parts, mechanical processing, steel metallurgy (bar/tube warehouse), and electronic component raw material/finished product warehouse. It also serves logistics sectors including regional distribution centers, e-commerce warehousing, and cold chain logistics (suitable for containerized/palletized goods). Special scenarios include small and medium-sized warehouses with limited space, multi aisle high turnover warehouses, and intelligent workshops that require seamless integration of production lines.
