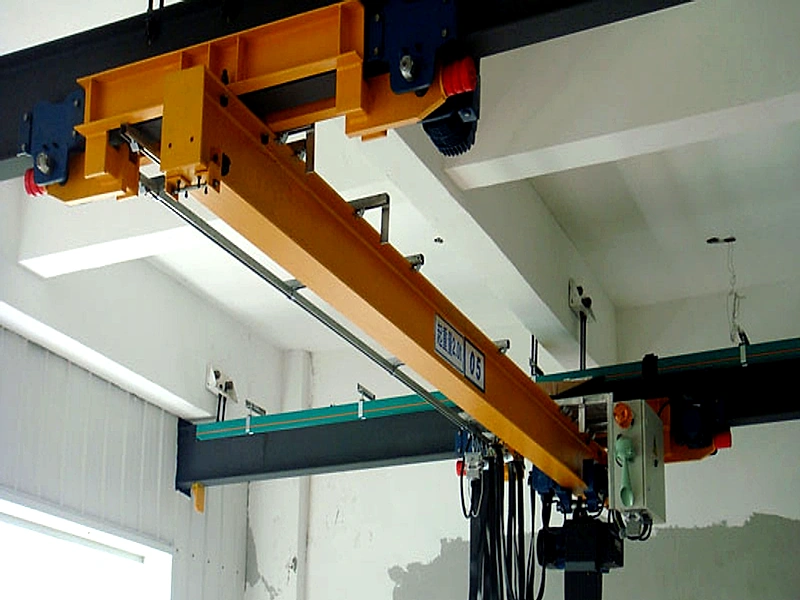

LX Model Electric Single Beam Suspension Crane
⭐ Key Features
- Electric single beam suspension design for flexible overhead material handling
- Compatible with CD and MD electric hoists for reliable lifting operations
- Ground-operated control for convenient and safe crane operation
- Suitable for -20°C to +40°C working environments
- Ideal for precision positioning in assembly and warehouse applications
🛠️ Service
📋 Product Specifications
| Model Number | LX |
|---|---|
| Lifting Capacity | 1-16 tons |
| Span Length | 3-16 meters |
| Working Class | A3-A5 |
| Lifting Speed | 8/0.8 m/min (dual speed) |
| Cross Travel Speed | 20 m/min |
| Long Travel Speed | 20 m/min |
| Power Supply | 380V/50Hz or customized |
| Control Mode | Ground pendant control |
| Working Environment Temp | -20°C to +40°C |
| Applicable Standards | GB/T 3811, ISO 9001 |
📄 Product Description
Product Introduction
The LX Model Electric Single Beam Suspension Crane is a high-performance overhead material handling solution designed for industrial workshops, warehouses, and assembly lines. Paired with CD or MD electric hoists, this electric single beam suspension crane provides reliable and efficient lifting for loads ranging from 1 to 16 tons. Its compact structure and ground-operated control system make it an ideal choice for light to medium-duty applications where flexibility and safety are critical. The crane operates effectively in temperatures from -20°C to +40°C and is not recommended for flammable, explosive, or corrosive environments.
Key Features
- Robust Single Beam Design: The electric single beam suspension crane features a welded box girder structure that ensures high strength and stability during operation.
- Compatible Hoist System: Works seamlessly with CD and MD electric hoists, offering both single-speed and dual-speed lifting options for precise load control.
- Ground Operation: Operator-friendly pendant control allows safe and intuitive crane movement, reducing the need for cabin operators and enhancing workplace safety.
- Customizable Span and Capacity: Available in spans from 3 to 16 meters and lifting capacities up to 16 tons, adaptable to various facility layouts.
- Durable Components: High-quality motors, brakes, and electrical components ensure long service life and minimal downtime.
- Easy Installation: Modular design simplifies on-site assembly and integration with existing building structures.

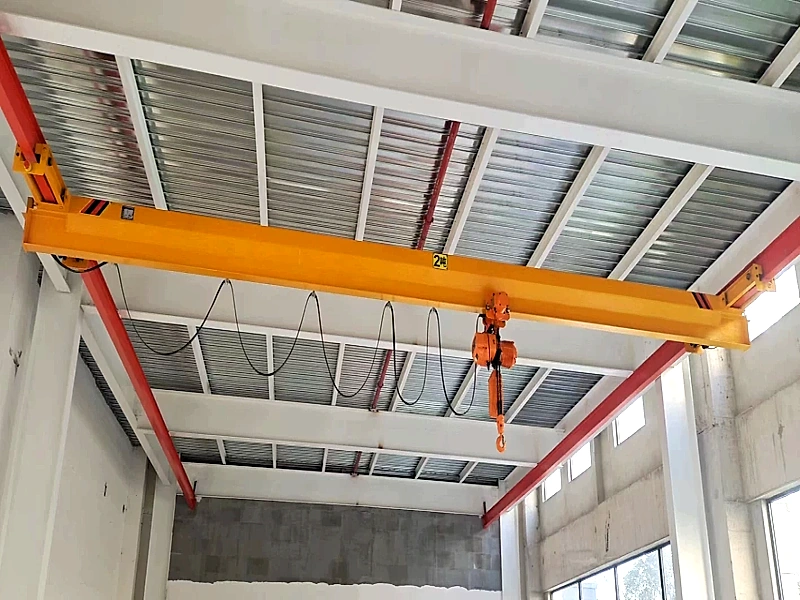

Applications
The LX Model Electric Single Beam Suspension Crane is widely used in mechanical manufacturing, petroleum, chemical, port, railway, civil aviation, electric power, food processing, papermaking, building materials, and electronics industries. It excels in workshops and warehouses requiring efficient material handling, especially where precise positioning of components is essential for assembly operations. This overhead crane is also suitable for small to medium enterprises looking for cost-effective yet reliable lifting equipment.
Quality Assurance
| Item | Standard |
|---|---|
| Certification | ISO 9001:2015, CE (optional) |
| Design Standard | GB/T 3811-2008 |
| Material Quality | Q235B steel, hot-dip galvanized options |
| Warranty | 12 months from commissioning |
| Testing | Load test, no-load test, and safety device inspection before delivery |
