Product Introduction

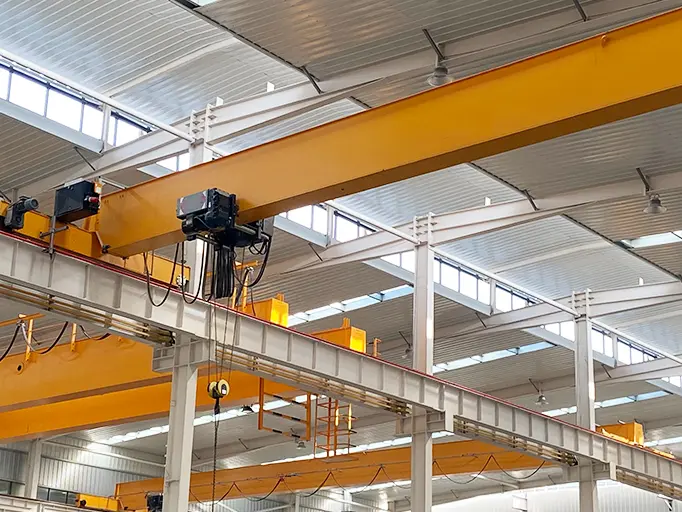

The light duty overhead crane is a FEM standards single girder overhead crane designed for infrequent use or light service, with load capacity from 1 ton to 20 ton. Common specifications include 1 ton, 2 ton, 3 ton, 4 ton, 5 ton, 8 ton, 10 ton, 15 ton, and 20 ton bridge cranes. These light duty overhead cranes are strictly fabricated in accordance with DIN, FEM, and ISO standards. The production and inspection processes strictly follow European standards. These cranes have one main girder with 1 or 2 electric wire rope hoists. The duty group is FEM 2m, making this type of bridge crane suitable for light industrial applications such as the installation and maintenance of equipment in power stations or other workplaces, or workshops and warehouses where work is not frequent.

Key Features

• Low Headroom: Compact design maximizes usable lifting space in facilities with limited ceiling height.
• Smart Driving, Higher Efficiency: Intelligent control system for smooth and efficient operation.
• Stepless Control Trolley: Infinite variable speed control for precise load positioning.
• Hardened Gear: Enhanced durability and longer service life of transmission components.
• IP55 Protection, F/H Insulation: Excellent protection against dust and water, with high-grade insulation for safety.
• Heavy Duty Motor, 60% ED Rating: Robust motor designed for demanding cycle operations.
• Over Heating and Overloading Protection: Built-in safety systems to prevent equipment damage.
• Electromagnetic Disk Brake: Reliable braking system for safe operation.
• Super Drum, Longer Rope Lifetime: Optimized drum design extends wire rope service life.
• DIN 34CrMo4 Hook, Class T: High-strength forged hook made from alloy steel.
• Maintenance Free: Reduced maintenance requirements for lower operating costs.

Technical Specifications – 5 Ton Single Girder Overhead Crane

Applications

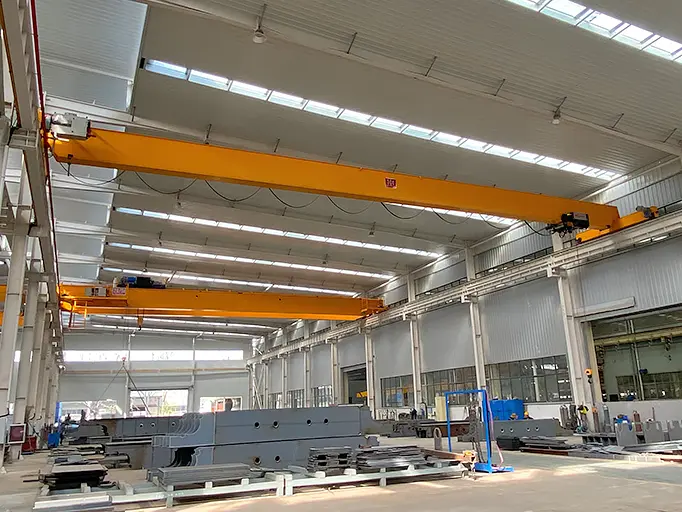

The 1-20 ton light overhead crane is widely used in various occasions such as engineering workshops, machining shops, dies and tools and moulds assembly workshops, automobile manufacturing workshops, power stations, paper mills, metallurgical workshops, and more. If overhead cranes are used in flammable, explosive, or corrosive media environments, the specific use environment should be clarified in advance.

Customization Services

Custom lifting solutions are available to meet specific client requirements. We offer the flexibility to use designated motor, reducer, bearing, and other brands requested by customers. With extensive experience in non-standard customization, modular designs can adapt to various needs while ensuring a firm structure and standardized production. World-renowned and top-rated brands are used for crane main components including ABB/SEW/Siemens/Jiamusi/Xindali motors, SEW/Dongly gearboxes, and FAG/SKF/NSK/LYC/HRB bearings. Each item holds CE/ISO certificates.

Cost-Saving Solutions

Two crane sale plans are available: Complete and Component. A Complete Overhead Crane is a fully assembled crane including all necessary components, while a Component Overhead Crane includes all parts except for the cross girder, which the buyer must provide locally (production drawings can be provided). Both plans offer the same quality, but the Component plan saves on transport costs.

After-Sales Services

Comprehensive after-sales services include on-site installation, crane maintenance, and spare parts services to ensure the bridge crane runs smoothly and efficiently long after initial installation.
