European Single Double Girder Wire Rope Electric Hoist Crane Equipment

Design Concept

European single double girder wire rope electric hoist crane equipment adopts lightweight and modular design, compact structure and high efficiency. Originated from European advanced manufacturing, it features light weight, small wheel pressure, energy saving, low noise and intelligence, complying with FEM, CE and ATEX certifications.

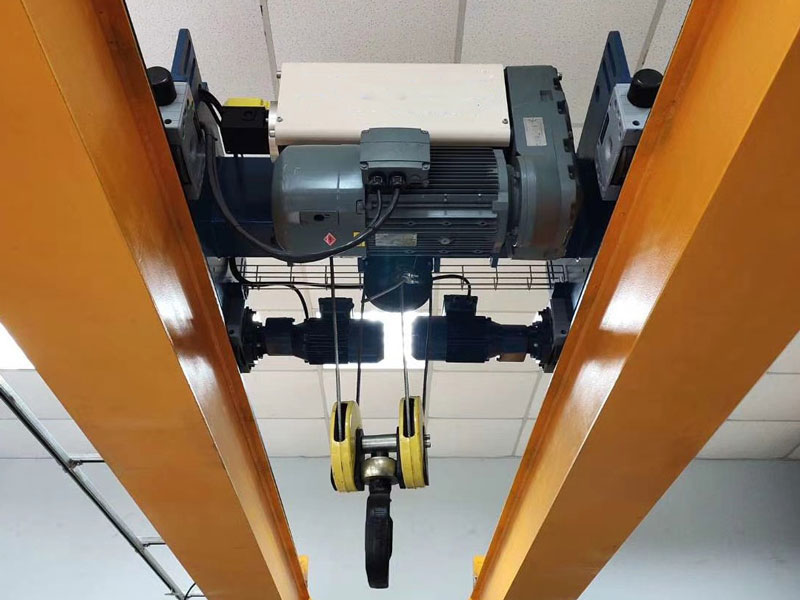

Structural Features

The main girder uses box-shaped steel structure with Q235B steel, non-destructive testing for main welds, shot blasting to Sa2.5 grade, automatic MIG welding. The end girder is made of rectangular steel pipe, processed by CNC machine, equipped with double-flange wheels, buffers and anti-derailment devices. Main girder and end girder are connected by high-strength bolts, ensuring precision and stable operation.

Self-weight is reduced by 23-64% compared with traditional cranes, lowering plant load and construction cost. It adopts C-type structure to optimize space, reduce headroom height, lower noise below 74dB and cut energy consumption by 30%.

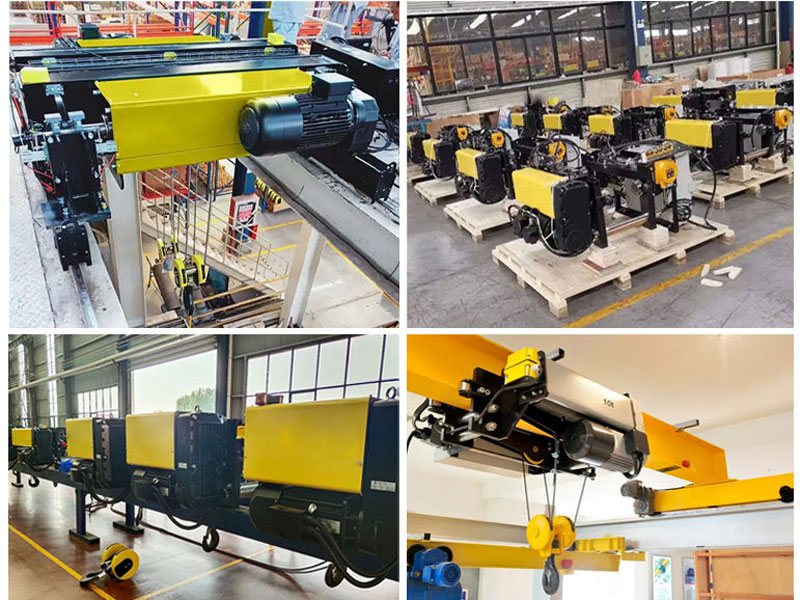

Anti-swing Technology Advantages

The anti-swing system calculates load swing time and lifting height to automatically correct swing. With intelligent variable frequency control, it realizes stepless speed regulation, micro-speed positioning and precision point movement (2-100mm).

• Stable: Swing angle controlled at ±0.25°, swing distance reduced to ±1.5cm
• Fast: Save 20-30% working time for accurate load placement
• Precise: Perfect for large mold lifting and precise positioning

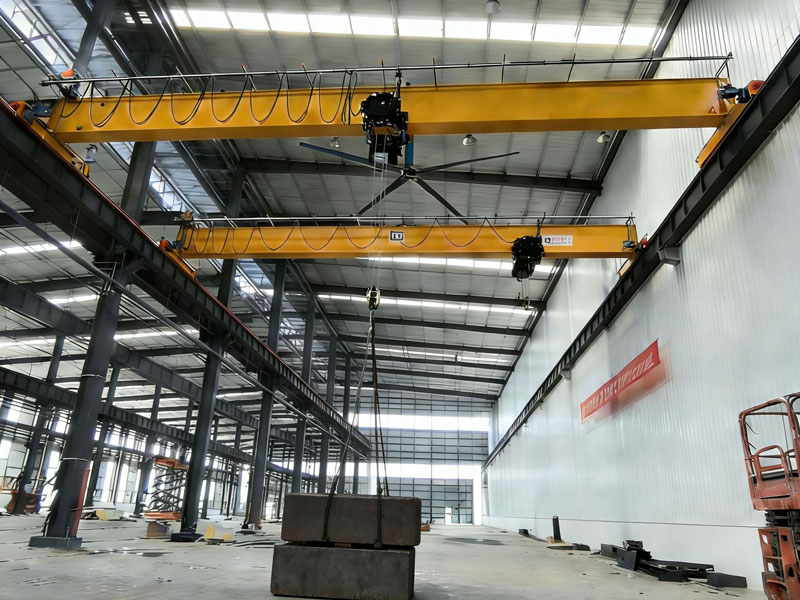

Application Scenarios

Suitable for limited space and high-flexibility industrial sites, lifting capacity 6.3-400 tons, span 5-60 meters. Ideal for frequent handling, high-efficiency production lines and heavy-duty industrial lifting.

Maintenance & Cost

This crane has lower maintenance cost and higher cost-performance. It supports operation monitoring, multiple limit protection and remote control interface, ensuring long service life and safe operation.
