Single Girder Overhead Crane works well for factory & warehouse lifting
⭐ Key Features
- 5-20t medium-light duty crane with rectangular coverage, space-saving, easy to install & maintain, stable operation, 30-50% lower cost than double-girder cranes.
🛠️ Service
📋 Product Specifications
| Model Number | Single Girder Overhead Crane |
|---|---|
| Applicable scenarios | Machinery & heavy equipment manufacturing, Metallurgy & metal processing, Industrial warehousing & logistics, Energy & building materials production, Transportation equipment manufacturing & maintenance |
| Rated Lifting Capacity | 5 Ton - 20 Ton |
| Span (Crane Girder Length) | 6 Meters - 30 Meters |
| Lifting Height | 6 Meters - 20 Meters |
| Working Class | A3 - A5 (ISO Standard) |
| Lifting Speed | 0.8 m/min - 8 m/min (adjustable via VFD) |
| Longitudinal Travel Speed | 10 m/min - 30 m/min |
| Cross Travel Speed | 5 m/min - 15 m/min |
| Power Supply | 380V/400V, 50Hz/60Hz, 3-Phase |
| Control Mode | Pendant Control / Wireless Remote Control |
📄 Product Description
Product Overview
In the dynamic world of industrial manufacturing and warehousing, efficient material handling is not just an operational need—it\\\’s a competitive advantage. Among the various equipment solutions available, the single girder overhead crane stands out as a versatile, cost-effective, and reliable workhorse for countless facilities. This article delves into the core aspects of single girder overhead cranes, exploring their design, benefits, typical applications, and key selection criteria for businesses looking to optimize their workflow.

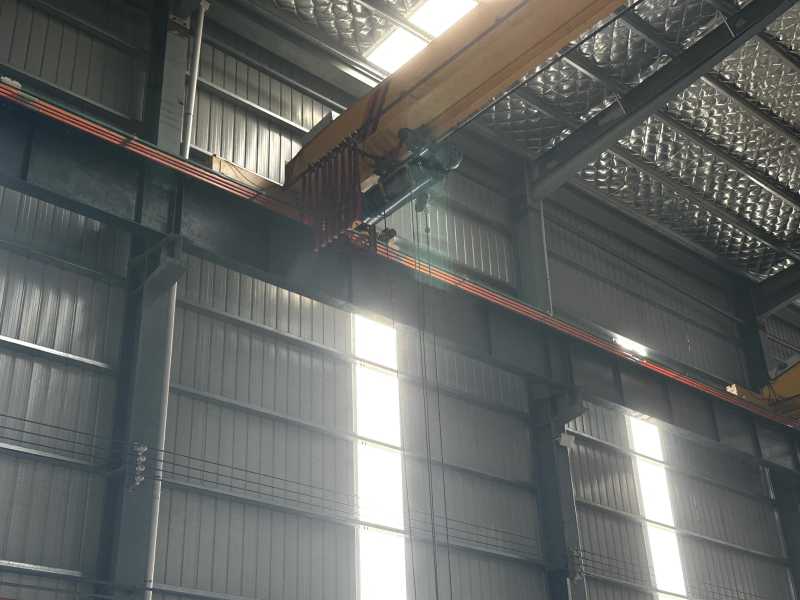

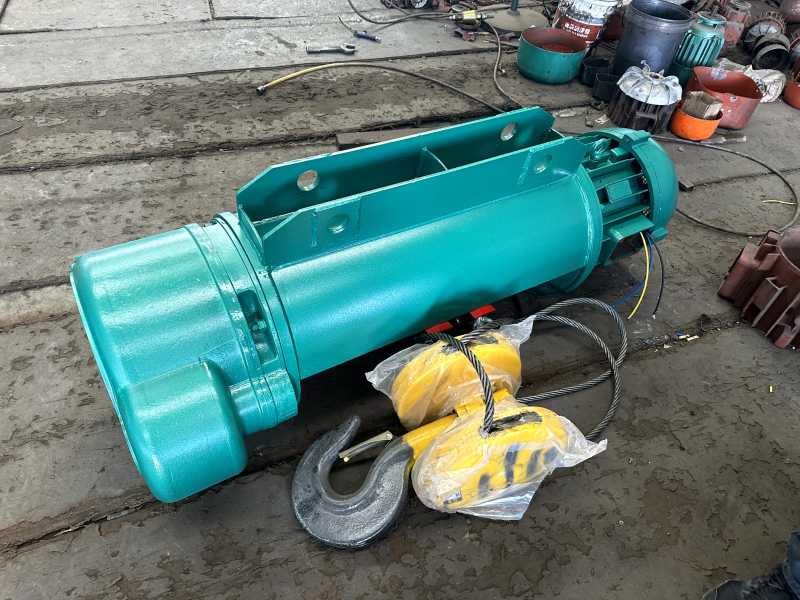

A single girder overhead crane, as the name implies, features a primary horizontal beam (the girder) that moves along runway beams fixed to the building\\\’s support structure. The hoist and trolley assembly travels along the bottom flange of this single girder, providing movement along one axis (the bridge motion). Combined with the longitudinal travel of the entire crane along the runway (the trolley motion), it creates a rectangular work area for lifting and moving loads. This design is inherently simpler and more economical than its double girder counterpart, which uses two girders to support the hoist.
Key Performance & Features
- Compact structure with centralized core components for easy installation and maintenance.
- Strong adaptability to medium-light loads (5-20t) and flexible rectangular working range.
- High space utilization (lower girder, higher lifting height) to reduce plant construction costs.
- Precise variable-frequency control and multiple safety protections (overload, limit) for stable operation.
- Significant cost advantage: 30%-50% lower purchase cost than double-girder cranes, plus low energy/operation costs.
Application Scenarios
The advantages of choosing a single girder design are compelling for many operations. First and foremost is cost efficiency. The simpler structure requires less material and often a lighter building support system, leading to significant savings in both initial investment and installation. Their lighter weight also translates to lower operational energy consumption. Furthermore, single girder cranes offer excellent versatility. They are ideal for light to medium-duty lifting tasks, typically ranging from 1 to 20 tons, making them perfect for machine shops, assembly lines, warehouses, and smaller manufacturing plants. Their design allows for a higher hook height compared to some other systems, maximizing usable space beneath the crane.
Quality & International Certifications
All our products are manufactured under strict quality control system, with CE, ISO9001, ISO14001, OHSAS18001, GOST, SASO certifications. Each product undergoes 100% factory testing before shipment to ensure safety, stability and compliance with international trade standards.
