JK1.0 Ton Hydraulic Electric Winch | Lifting Equipment
⭐ Key Features
- Copper core motor for reliable and efficient operation
- Hydraulic brake system for enhanced safety and control
- Reinforced drum for long service life
🛠️ Service
📋 Product Specifications
| Model Number | JK1.0T |
|---|---|
| Lifting Capacity | 1.0 ton |
| Motor Type | Copper Core Electric Motor |
| Transmission | Gearbox |
| Brake System | Hydraulic Brake |
| Drum Type | Reinforced Large Drum |
| Wire Rope Diameter | 20 mm |
| Max Rotation Speed | 2 rpm |
| Composition | Copper Core Motor, Gearbox, Motor Junction Box, Reinforced Drum, Hydraulic Brake, Resistor Box |
| After-Sales Service | 1 Year Warranty |
📄 Product Description
Product Introduction
The JK1.0 ton hydraulic electric winch is a high-performance lifting solution designed for industrial material handling. Featuring a copper core motor and a hydraulic brake system, this electric winch ensures reliable operation under heavy loads. The reinforced drum and precision gearbox deliver stable performance for construction, warehouse, and manufacturing applications. Available models include JK0.5T to JK5.0T, with the JK1.0T offering an optimal balance of power and control.

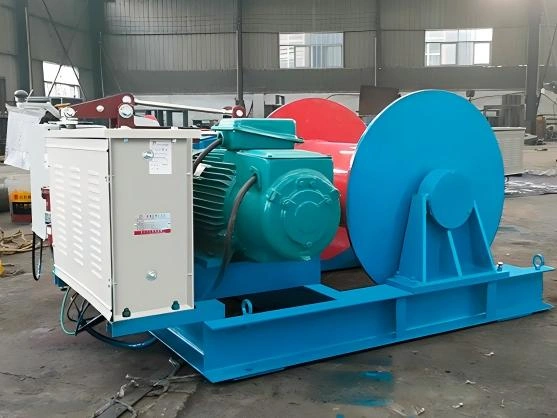

Key Features
- Copper core motor provides high torque and durability for continuous lifting tasks.
- Hydraulic brake system ensures smooth stopping and enhanced safety.
- Reinforced large drum accommodates thicker wire ropes and reduces wear.
- Integrated resistor box allows for speed control and load regulation.
- Compact design with robust gearbox for minimal maintenance.

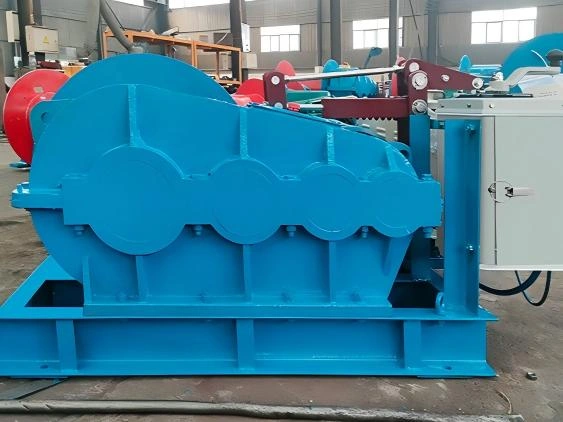

Applications
This hydraulic electric winch is ideal for lifting and pulling in construction sites, factories, warehouses, and docks. It is widely used for hoisting heavy machinery, building materials, and cargo. The JK1.0T model is particularly suited for medium-duty applications requiring precise control and reliability.
Quality Assurance
| Item | Standard |
|---|---|
| Certification | ISO 9001 |
| Warranty | 1 Year |
| Motor Protection | IP54 |
| Brake System | Hydraulic, Tested |
