Double Beam Single Column Bridge Stacker Crane
⭐ Key Features
- Dual overhead bridge system enables precise 4-directional movement (N-S-E-W)
- Versatile load handling from 100kg to 2,000kg with tractor drive for higher capacities
- Flexible power options: electric or air-powered to suit any operational environment
🛠️ Service
📋 Product Specifications
| Model Number | DSSC-2000 |
|---|---|
| Load Capacity | 100 kg - 2,000 kg |
| Bridge System | Dual overhead bridge with two runways |
| Movement | North-South-East-West (4-directional) |
| Vertical Traverse | Pair of forks or grippers along two columns |
| Column Position | Outside the rack (unobstructed) |
| Rotation | Manual via low-friction bearings |
| Power Options | Electric or Air-powered |
| Control Mode | Manual or Automated (customizable) |
| Drive Type | Tractor drive (high-capacity models) |
| Standard | GB/T 14406-2011 |
📄 Product Description
Product Introduction

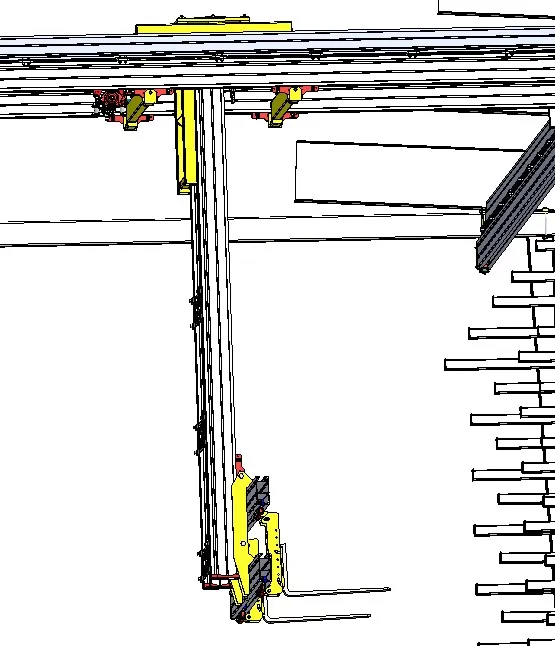

The Double Beam Single Column Bridge Stacker Crane is a versatile and efficient material handling solution designed for warehouse and industrial applications. Utilizing a dual overhead bridge system that moves along two runways, this stacker crane enables smooth North-South-East-West movement for precise positioning. Equipped with a pair of forks or grippers that traverse vertically along two columns, it handles loads ranging from 100kg to 2,000kg with ease. The columns are typically positioned outside the rack to allow unobstructed movement, maximizing operational efficiency in any facility.

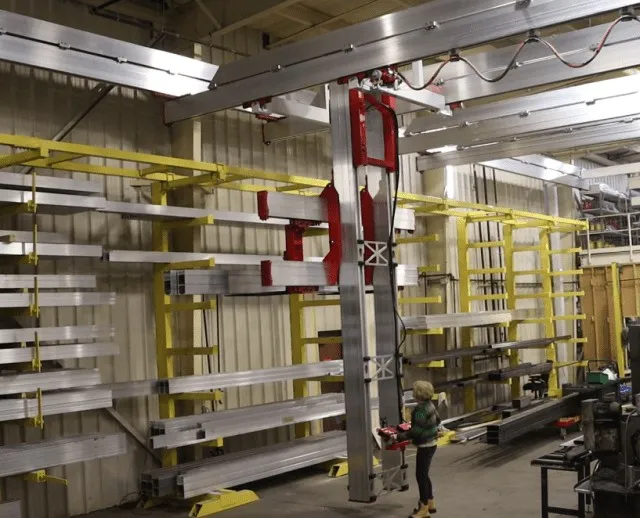

Key Features
- Dual overhead bridge system for precise North-South-East-West movement across the entire workspace
- Load capacity range from 100kg to 2,000kg, suitable for light to medium-heavy material handling tasks
- Tractor drive available for high-capacity models providing thrust in any direction on demand
- Low-friction bearing system for smooth manual rotation along the vertical axis
- Columns positioned outside the rack for unobstructed stacker movement in all directions
- Flexible power options: electric or air-powered to accommodate different operational requirements
- Customizable control: manually controlled or fully automated to suit specific needs
Applications

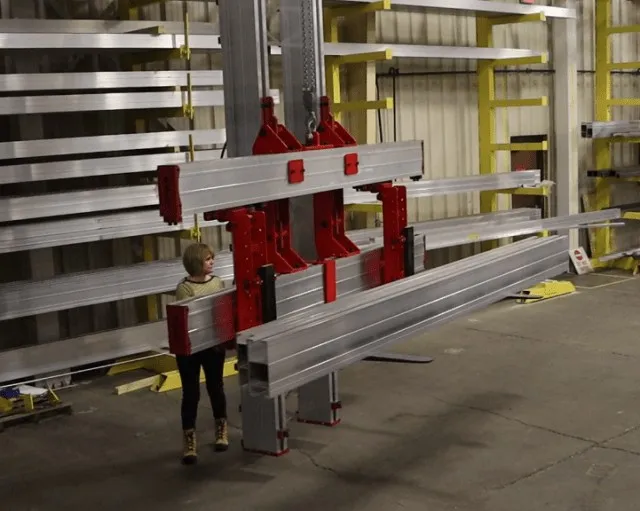

The Double Beam Single Column Bridge Stacker Crane is ideal for warehouse rack and cantilever rack material storage systems where efficient loading and unloading is essential. It is widely used in manufacturing facilities, distribution centers, steel warehouses, and logistics hubs requiring precise vertical and horizontal material handling. The stacker crane excels in environments where maximizing vertical storage space while maintaining quick access to inventory is a priority. Its ability to traverse seamlessly in all four directions ensures optimal workflow and reduced cycle times for repetitive material handling operations.
Quality Assurance
| Item | Standard |
|---|---|
| Certification | CE / ISO 9001 |
| Working Duty | A3-A5 (GB/T 14406-2011) |
| Power Supply | Electric or Air-powered |
| Warranty | 1 Year |
