YZS Type Four Girder Casting Crane 100-300 Ton | Heavy Duty Crane for Steel Mills
⭐ Key Features
- Four box girder design for superior load capacity up to 300 tons, complying with DIN/FEM international standards
- High-strength Q235B/Q345B steel with full pretreatment: sand blasting, primer spray, and primer drying to eliminate internal stress
- German Messer CNC plasma cutting machine for steel plate cutting with <1mm deviation precision
- Industry-leading intelligent welding robot for main beam welding; advanced MAG welding with Ar+CO2 mixed gas
- Comprehensive quality control: radiographic inspection + ultrasonic flaw detection for all welding joints
- World-class annealing furnace (10000×4000×4000mm) for post-weld stress-relieving treatment
- Patented anti-swing mechanism technology available for heavy ladle handling operations
- Complete safety systems: overload protection, limit switches, anti-collision, emergency-off, voltage lower protection
🛠️ Service
📋 Product Specifications
| Model Number | YZS-200T |
|---|---|
| Type | YZS Type Four Girder Casting Crane |
| Lifting Capacity | 100-300 ton (customizable) |
| Girder Structure | Four box girder (DIN/FEM standard) |
| Steel Material | Q235B / Q345B |
| Trolley Rail | High strength hot rolled flat steel (16 Mn) |
| Painting | Epoxy zinc-rich, 120μm (1 bottom + 2 sides) |
| Girder Connection | High strength bolts |
| End Beam | Flat wheel / double rim wheels + anti-friction bearings |
| Safety | Buffer blocks + derailment preventing end plate |
| Welding Inspection | Radiographic + ultrasonic flaw detection |
| Annealing | Natural gas furnace 10000x4000x4000mm |
| Standard | GB/T10183-2005 / FEM / DIN |
📄 Product Description
Product Introduction

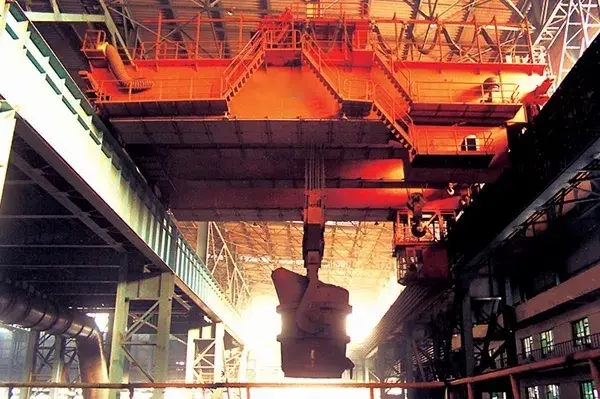

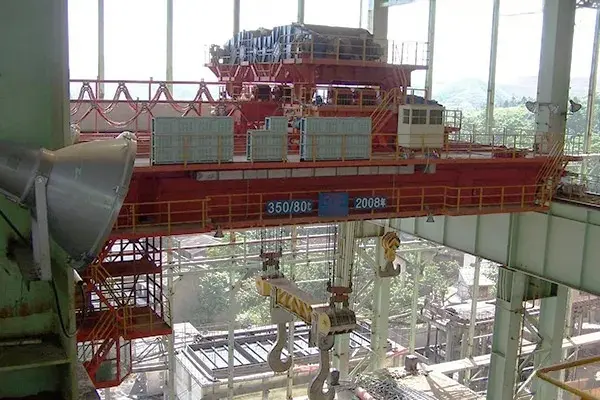

The YZS Type Four Girder Casting Crane is a heavy-duty overhead crane designed for extra-heavy steel mill applications requiring lifting capacities from 100 to 300 tons. Unlike the standard double girder design, this crane features a unique four-girder (four beam) structure providing exceptional strength, stability, and safety for critical molten metal handling operations. The crane is built with high-strength Q235B and Q345B steel plates and manufactured to DIN/FEM international standards. All steel undergoes full pretreatment including sand blasting, primer spray, and drying to eliminate internal stress and enhance anti-corrosion performance. The YZS type four girder casting crane is produced with advanced German Messer CNC plasma cutting for precision, intelligent welding robots for superior weld quality, and a large car-bottom natural gas annealing furnace for post-weld stress relief.
Key Features
- Four Girder Design: Extra-heavy duty four box girder structure for 100-300 ton lifting capacity, designed to DIN/FEM standards with Q235B/Q345B steel
- Full Steel Pretreatment: Sand blasting → primer spray → drying production line eliminates internal stress and improves anti-corrosion adhesion
- German CNC Precision Cutting: Messer CNC plasma cutting machine from Germany ensures <1mm deviation, achieving top-level industry precision
- Intelligent Welding Robot: First enterprise in China to use welding robots; advanced Ar+CO2 MAG welding for internal joints and automatic submerged-arc welding for external joints
- Radiographic & Ultrasonic Testing: 100% inspection of all welding joints and fillet welds to ensure flawless quality
- Large Annealing Furnace: Natural gas car-bottom furnace (10000×4000×4000mm) — unique capability in China Crane Hometown for stress-relieving treatment
- High-Strength Bolted Assembly: Girder and end beam connected by high strength bolts for structural precision
- Epoxy Zinc-Rich Painting: 120μm thick (1 bottom + 2 sides) for long lifespan and corrosion resistance
Applications
The YZS type four girder casting crane is specifically designed for the most demanding steel mill and foundry applications requiring extra-heavy lifting capacities. With its 100-300 ton capacity and four-girder design, it is ideal for: large steelmaking converter shops for hot metal charging and ladle handling; continuous casting plants for heavy molten steel ladle lifting and rotating; large foundry workshops for iron and steel pouring operations with extra-heavy ladles; heat treatment plants for heavy component handling; and integrated steel plants requiring high-capacity material handling solutions. The crane can be customized with electromagnetic lifting beams, grab buckets, ladle rotating devices, and remote control systems for maximum operational efficiency.
Quality Assurance
| Item | Standard |
|---|---|
| Manufacturing Standard | GB/T10183-2005 / FEM / DIN |
| Test Procedure | GB/T5905-1986 |
| Electrical Equipment | JB/T4315-1997 |
| Wire Rope Standard | GB8918-2006 |
| Welding Inspection | Radiographic (JB928) + Ultrasonic (GB11345) |
| Annealing Treatment | Natural gas car-bottom furnace (10000×4000×4000mm) |
| Safety Protection | Overload / Emergency-off / Anti-collision / Voltage lower |
| Warranty | 1 Year |
