Wire Rope Hoist CD1 MD1 Light Duty Lifting Equipment
⭐ Key Features
- CD1 MD1 wire rope hoist is light lifting equipment for general and precision lifting
🛠️ Service
📋 Product Specifications
| Model Number | CD1 MD1 |
|---|
📄 Product Description
Product Introduction

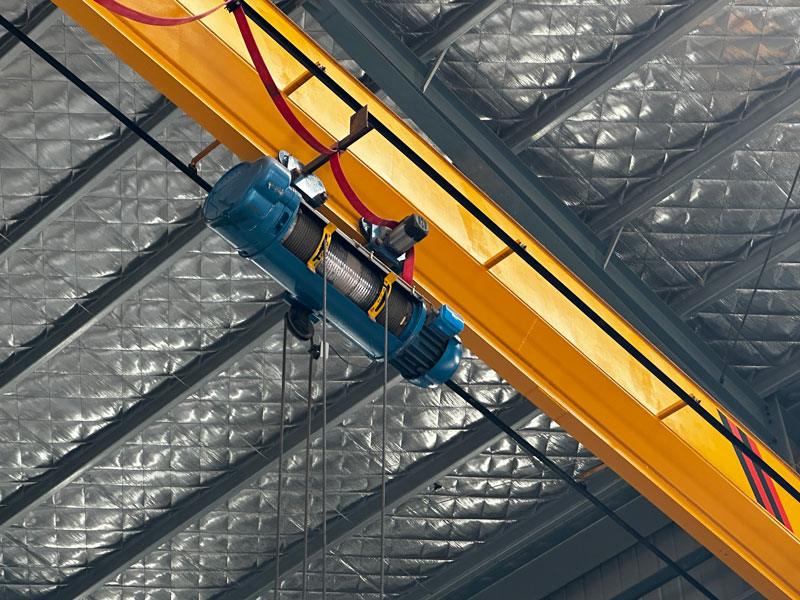

CD1 and MD1 wire rope hoists are light-duty lifting equipment. They can be installed on single girder cranes, overhead cranes, gantry cranes and jib cranes. With minor modifications, they can also be used as winches.
These hoists are widely used in factories, mines, ports, warehouses, cargo yards and shops, serving as essential machinery to improve work efficiency and working conditions.
Model Features
CD1 wire rope hoist features a single normal lifting speed to meet general application requirements.
MD1 wire rope hoist provides dual lifting speeds (normal and low speed). The low speed is ideal for precise loading and unloading, sand mold closing, machine tool maintenance and other fine operations, making it more widely applicable than CD1 type.
Our HC type large-tonnage wire rope hoists are available to meet heavy-duty lifting needs.

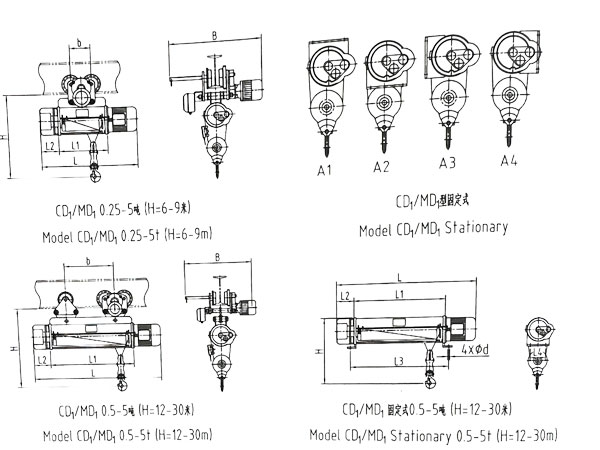

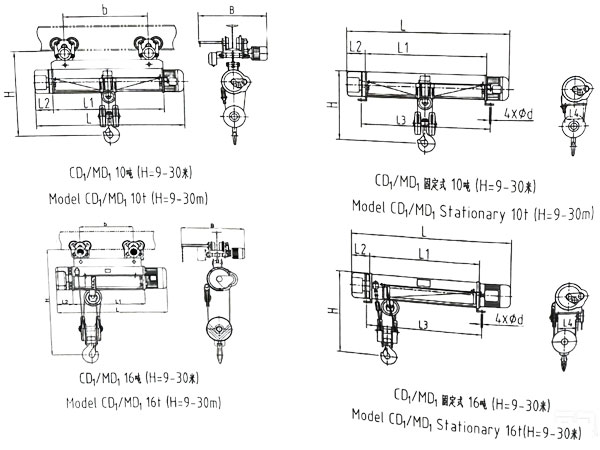

Technical Parameters
| Model | Lifting Capacity (t) | Lifting Height (m) | Lifting Speed (m/min) | Travel Speed (m/min) | Wire Rope (Dia mm / Structure) | Travel Rail | Power Supply | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| CD₁/MD₁ | 0.25 | 3-9 | 8 (MD₁: 0.8/8 Dual Speed) | 20/30 | 3.6 / 6×19 | 16-22b | Three-phase AC 380V 50Hz | 30-32 |
| CD₁/MD₁ | 0.5 | 3-9 | 8 (MD₁: 0.8/8 Dual Speed) | 20/30 | 4.8 / 6×37+1 | 16-28b | Three-phase AC 380V 50Hz | 88-111 |
| CD₁/MD₁ | 1 | 6-30 | 8 (MD₁: 0.8/8 Dual Speed) | 20/30 | 7.7 / 6×37+1 | 16-28b | Three-phase AC 380V 50Hz | 116-192 (CD₁); 138-195 (MD₁) |
| CD₁/MD₁ | 2 | 6-30 | 8 (MD₁: 0.8/8 Dual Speed) | 20/30 | 11 / 6×37+1 | 20a-32c | Three-phase AC 380V 50Hz | 203-313 (CD₁); 215-287 (MD₁) |
| CD₁/MD₁ | 3 | 6-30 | 8 (MD₁: 0.8/8 Dual Speed) | 20/30 | 13 / 6×37+1 | 20a-32c | Three-phase AC 380V 50Hz | 222-437 (CD₁); 299-369 (MD₁) |
| CD₁/MD₁ | 5 | 6-30 | 8 (MD₁: 0.8/8 Dual Speed) | 20/30 | 15 / 6×37+1 | 25a-45C | Three-phase AC 380V 50Hz | 457-894 (CD₁); 384-588 (MD₁) |
| CD₁/MD₁ | 10 | 9-30 | 7 (MD₁: 0.7/7 Dual Speed) | 20/30 | 15 / 6×37+1 | 30T-45c | Three-phase AC 380V 50Hz | 797-1199 (CD₁); 787-1199 (MD₁) |
| CD₁/MD₁ | 16 | 9-18 | 3.5 (MD₁: 0.35/3.5 Dual Speed) | 20 | 17.5 / 6×37+1 | 30T-45c | Three-phase AC 380V 50Hz | 1087-1386 (CD₁); 989-1386 (MD₁) |
| CD₁/MD₁ | 20 | 9-18 | 4 (Single Speed) | 20 | 19.5 / 6×37+1 | 40b-63c | Three-phase AC 380V 50Hz | 1199-1386 (CD₁/MD₁) |
