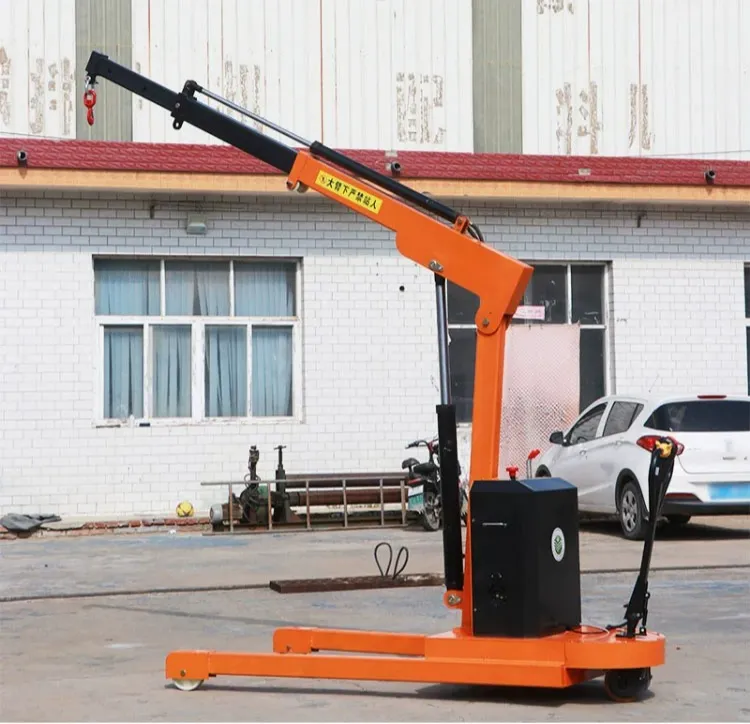

Electric Hydraulic Truck Crane | 200-1000kg Vehicle Mounted Crane with Trolley
⭐ Key Features
- Vehicle-mounted design with 200-1000kg lifting capacity for flexible cargo handling
- Hydraulic telescopic boom with 0-140° angle adjustment for precise positioning
- Multiple power supply options (12V/24V/48V/220V) for global compatibility
- Manual lever or wireless remote control operation for user convenience
- Detachable trolley base for mobile ground-level operation
🛠️ Service
📋 Product Specifications
| Model Number | EHT-200/1000 |
|---|---|
| Model | EHT-200/1000 |
| Lifting Capacity | 200-1000 kg |
| Lifting Height | 3m (with trolley) / 3.7m (3-section boom) |
| Boom Length | 1.26m - 2.75m (3-section) |
| Boom Sections | Standard 2, Optional 3 |
| Retracted Height | Main unit 1.55m, with trolley 1.76m |
| Boom Angle Range | 0-140° |
| Extension Stroke | 75cm (2nd arm hydraulic, 3rd arm manual) |
| Rotation Method | Manual (standard), Electric Hydraulic (premium) |
| Operation Mode | Manual lever, Wireless remote (custom) |
| Lifting Speed Up | 50s/cycle |
| Lifting Speed Down | 35s/cycle |
| Extension Speed Out | 25s/cycle |
| Extension Speed In | 13s/cycle |
| Power Supply | 12V, 24V, 48V, 220V |
| Battery Options | 12V 105Ah, 48V 20Ah |
| Motor Power | 1.2kw (DC), 2.2kw (AC 220V) |
| Hydraulic Oil | 46# Anti-wear, 3L tank capacity |
| Net Weight | 150 kg (before packing) |
| Trolley Height | 22cm |
| Trolley Handle Height | 88cm |
| Trolley Length | 155cm |
| Trolley Width Inner | 60cm |
| Trolley Width Outer | 85cm |
| Wheel Type | 5 inch fixed × 2 + 5 inch swivel × 2 |
| Probe Arm Size (90°) | 2-section: 60cm, 3-section: 130cm |
📄 Product Description
Product Introduction
The Electric Hydraulic Truck Crane is a versatile vehicle-mounted lifting solution with 200-1000kg lifting capacity, designed for convenient cargo handling on trucks and trailers. Featuring a telescopic boom with 2 or 3 sections, hydraulic rotation, and optional wireless remote control, this compact crane is ideal for logistics, construction sites, and warehouse loading operations.

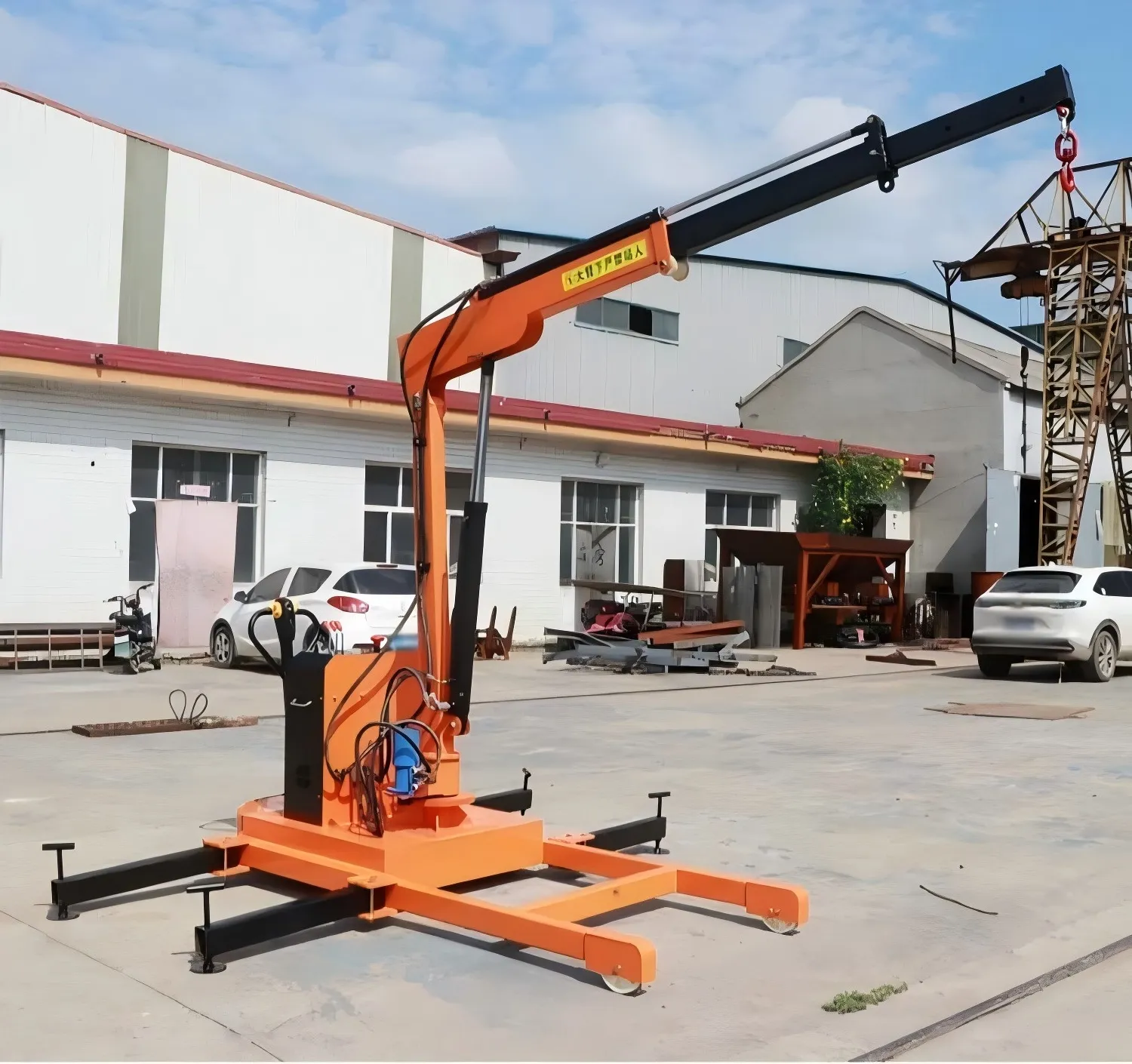

Key Features
- 200-1000kg lifting capacity with hydraulic telescopic boom (2 or 3 sections)
- Adjustable boom angle 0-140° for flexible positioning in various working conditions
- Multiple power options: 12V, 24V, 48V, 220V with battery ready setup
- Manual rotation (standard) or electric hydraulic rotation (premium) for 360° operation
- Compatible with mobile trolley base for easy movement when not vehicle-mounted

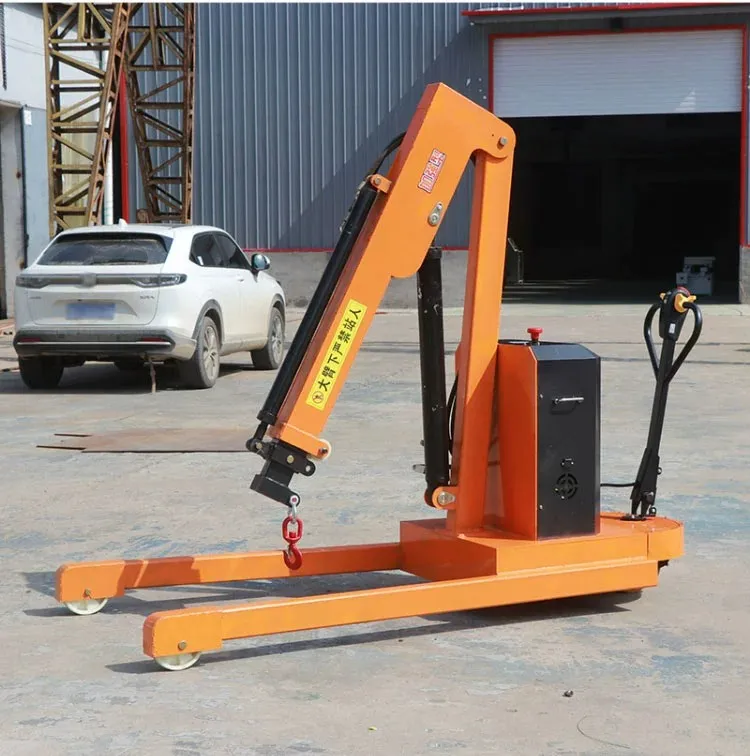

Applications
This electric hydraulic truck crane is widely used for loading and unloading goods on trucks, pickup trucks, trailers, and in warehouses, farms, construction sites, and logistics centers. Its compact design and detachable trolley option make it suitable for both fixed vehicle mounting and mobile ground operations.
Quality Assurance
| Item | Standard |
|---|---|
| Hydraulic Oil | 46# Anti-wear Hydraulic Oil, 3L Tank |
| Motor Power | 1.2kw (12/24/48V), 2.2kw (220V) |
| Power Cable | ≥10mm² Copper Wire, within 3m |
| Warranty | 1 Year |
