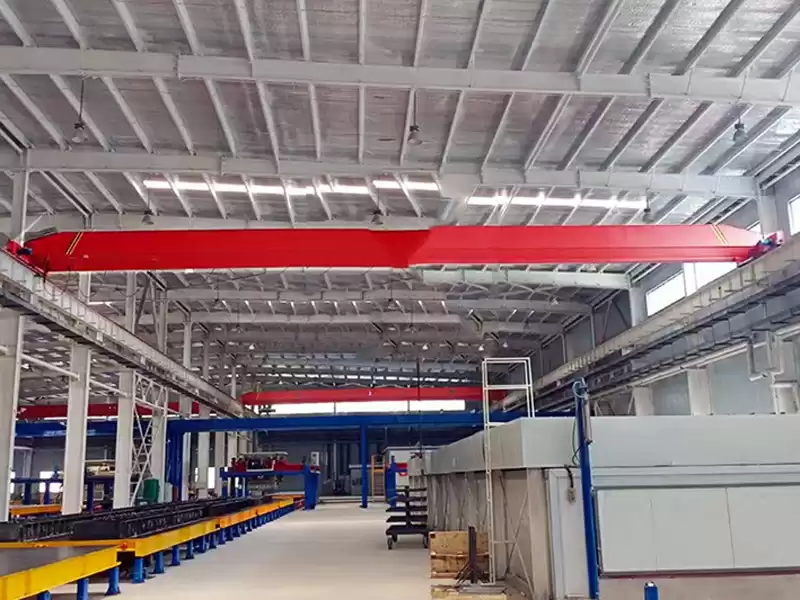

Single Girder Overhead Crane Efficient Material Handling Solutions
In the dynamic world of industrial manufacturing and warehousing, efficient material handling is not just an operational need—it’s a competitive advantage. Among the various equipment solutions available, the single girder overhead crane stands out as a versatile, cost-effective, and reliable workhorse for countless facilities. This article delves into the core aspects of single girder overhead cranes, exploring their design, benefits, typical applications, and key selection criteria for businesses looking to optimize their workflow.
What Is a Single Girder Overhead Crane
A single girder overhead crane features a primary horizontal beam that moves along runway beams fixed to the building’s support structure. The hoist and trolley assembly travels along the bottom flange of this single girder. This design is simpler and more economical than double girder cranes, ideal for most light to medium‑duty lifting tasks.
Advantages of Single Girder Overhead Cranes
These cranes provide strong cost efficiency due to less material and lighter support structure requirements. They feature lower energy consumption, high versatility, and excellent space utilization. Suitable for loads from 1 ton to 20 tons, they fit machine shops, assembly lines, warehouses, and small manufacturing plants.
Main Applications
Single girder overhead cranes are widely used in manufacturing for material and component handling, warehouses for loading and inventory management, repair bays, foundries, and other facilities that need stable and precise lifting operations.
Key Selection Specifications
- Lifting Capacity based on actual working load
- Span matching the building runway distance
- Lifting Height for vertical operation needs
- Working Class according to usage frequency
- Control Mode including pendant and wireless remote
- Safety Features such as overload protection and limit switches
Procurement and Supplier Selection
Choose a professional manufacturer that complies with international standards such as ISO FEM CMAA. Reliable suppliers offer site surveys, custom design, installation, and complete after‑sales support including training maintenance and spare parts.
Conclusion
The single girder overhead crane is a highly efficient and economical solution for modern industrial material handling. It improves productivity safety and workflow continuity. Selecting the right configuration and trusted supplier ensures stable long‑term performance for daily operations.
Technical Parameters
Rated Lifting Capacity 5 Ton – 20 Ton
Span Crane Girder Length 6 Meters – 30 Meters
Lifting Height 6 Meters – 20 Meters
Working Class A3 – A5 ISO Standard
Lifting Speed 0.8 m/min – 8 m/min adjustable via VFD
Longitudinal Travel Speed 10 m/min – 30 m/min
Cross Travel Speed 5 m/min – 15 m/min
Power Supply 380V/400V 50Hz/60Hz 3-Phase
Control Mode Pendant Control / Wireless Remote Control
